Expansion Tanks

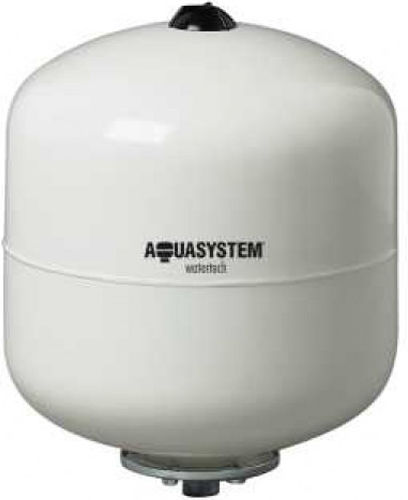

Aquasystem VS8 Vertical Solar Expansion Tank 8lt

The expansion tank protects your solar system from high pressure created by the expansion of fluids at high temperatures. It features a special EPDM-HT membrane that is resistant to temperatures up to...

The expansion tank protects your solar system from high pressure created by the expansion of fluids at high temperatures. It features a special EPDM-HT membrane that is resistant to temperatures up to 140°C. It is suitable for operation with glycol solutions. The membrane prevents contact between the water and the metal walls, keeping the circuit fluid...

See full description See full description

Description

Description

The expansion tank protects your solar system from high pressure created by the expansion of fluids at high temperatures. It features a special EPDM-HT membrane that is resistant to temperatures up to 140°C. It is suitable for operation with glycol solutions. The membrane prevents contact between the water and the metal walls, keeping the circuit fluid clean.

In the case of higher temperatures, using an additional expansion tank helps cool the fluid in the system and protects the expansion tank membrane. They have been manufactured and tested according to the current European Regulation.

  • Manufacturer: Aquasystem
  • Liters: 8
  • Max operating pressure (bar): 10
  • Dimensions height-diameter (mm): 316/200
  • Connection-supply location: At the bottom of the tank
  • Installation: Without base (legs)
  • Factory preset (bar): 2.5
  • Connection diameter (inch): 3/4''
  • Operating temperature range: -10°C to +140°C

Manufacturer

See full description

Specifications

Specifications

Specifications

Capacity
8 lt
Placement
Vertical
Pressure
10 bar
Usage
Solar
with Stand
No

Dimensions

Diameter
-
Height
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (5)

Reviews

  1. 5
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The expansion tank protects your solar system from high pressure created by the expansion of fluids at high temperatures. It features a special EPDM-HT membrane that is resistant to temperatures up to 140°C. It is suitable for operation with glycol solutions. The membrane prevents contact between the water and the metal walls, keeping the circuit fluid clean.

In the case of higher temperatures, using an additional expansion tank helps cool the fluid in the system and protects the expansion tank membrane. They have been manufactured and tested according to the current European Regulation.

  • Manufacturer: Aquasystem
  • Liters: 8
  • Max operating pressure (bar): 10
  • Dimensions height-diameter (mm): 316/200
  • Connection-supply location: At the bottom of the tank
  • Installation: Without base (legs)
  • Factory preset (bar): 2.5
  • Connection diameter (inch): 3/4''
  • Operating temperature range: -10°C to +140°C

Manufacturer

Specifications

Capacity
8 lt
Placement
Vertical
Pressure
10 bar
Usage
Solar
with Stand
No

Dimensions

Diameter
-
Height
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Reviews (5)

  1. 5
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
28,81 €
14,00 €   shipping cost
