- With built-in float switch and vertical water outlet, suitable for installation in narrow spaces
- New ergonomic design
- Manual and automatic operation (with sensor that controls the water level for start-stop operation)
- Suitable for dirty water with foreign particles up to 35mm in diameter
Submersible pump suitable for dirty water, with built-in float and vertical water outlet, suitable for installation in narrow spaces. Manual and automatic operation (with a sensor that controls the water level for start-stop operation). Suitable for dirty water with foreign particle content up to a maximum diameter of 35mm.
Features
- With built-in float switch and vertical water outlet, suitable for installation in narrow spaces
- New ergonomic design
- Manual and automatic operation (with sensor that controls the water level for start-stop operation)
- Suitable for dirty water with foreign particles up to 35mm in diameter

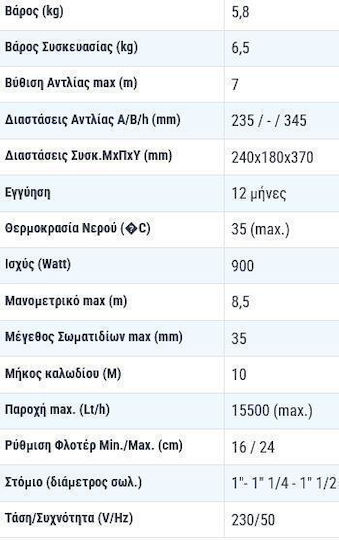

Specifications
- Voltage: 230 /50 V/Hz
- Power: 900 W
- Flow rate: 15500 lt/h
- Max head: 8.5m
- Maximum submersion depth: 7m
- Outlet: 1" - 1" 1/4 - 1" 1/2
- Maximum particle passage: 35 mm
- Cable: 10m
- Packaging dimensions: 240 x 180 x 370 mm

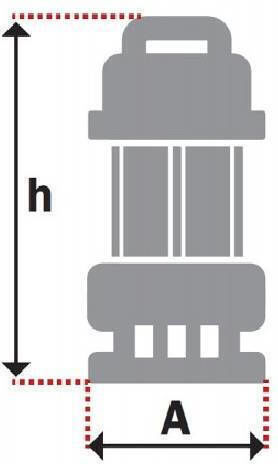

- Pump dimensions (A/h): 235/345
- Weight (N/G): 5.8/6.5 Kg
Dimensions
- Type
- Waste Water / Sewage, Rainwater
- Power Source
- Electric
- Voltage
- Single-Phase
- Horsepower
- 1.2 hp
- Power
- 900 W
- Cable Length
- 10 m
Features
- with Cutter Impeller
- No
- Float switch
- Yes
- Outlet Nozzle
- 1", 1 1/2", 1 1/4"
- Vortex
- No

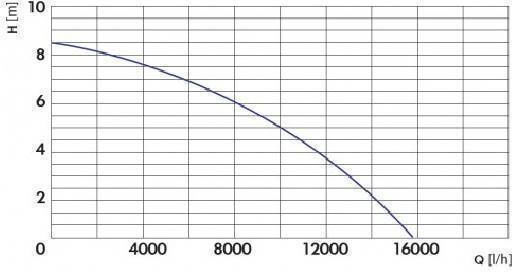

Pumping Specifications
- Maximum Head Height
- 8.5 m
- Maximum Output
- 15 m³/h
- Pump Submersion Depth
- 7 m
- Maximum Particle Size
- 35 mm
Materials & Construction
- Set
- No
- Stainless
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
