Elettrocanali Wall-Mounted Waterproof Electrical Panel W400xH400xD200mm
Fuse Box

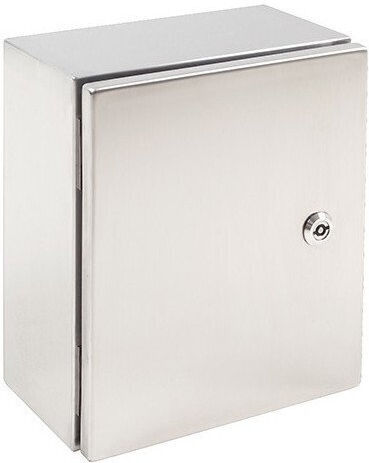

Elettrocanali Wall-Mounted Waterproof Electrical Panel W400xH400xD200mm

The Elettrocanali electrical enclosure is wall-mounted and watertight, with an IP66 protection rating. The ARGENTA enclosure is made of 304L stainless steel and is designed for demanding industrial...

The Elettrocanali electrical enclosure is wall-mounted and watertight, with an IP66 protection rating. The ARGENTA enclosure is made of 304L stainless steel and is designed for demanding industrial environments and the food industry.

The flat mounting plate is made of 2 mm-thick galvanized sheet steel, while the seal is provided by a molded polyurethane...

See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Elettrocanali electrical enclosure is wall-mounted and watertight, with an IP66 protection rating. The ARGENTA enclosure is made of 304L stainless steel and is designed for demanding industrial environments and the food industry.

The flat mounting plate is made of 2 mm-thick galvanized sheet steel, while the seal is provided by a molded polyurethane gasket. The enclosure has an IK10 impact resistance rating and operates at ambient temperatures from -25 °C to +60 °C.

  • Mounting: Wall-mounted
  • Ingress protection: IP66
  • Color: Grey
  • Height: 400 mm
  • Width: 400 mm
  • Depth: 200 mm
  • Enclosure material: 304L stainless steel
  • Mounting plate material: Galvanized sheet steel
  • Mounting plate thickness: 2 mm
  • Sealing: Molded polyurethane gasket
  • Impact resistance: IK10
  • Operating ambient temperature: From -25 °C to +60 °C
  • Maximum operating voltage: 1000 V AC
  • NEMA protection rating: 1, 4, 4X, 12
  • Certification: UL508A
  • Compliance: Low Voltage Directive 2014/35/EU
  • Standards: UNE-EN 62208, UNE-EN 61439-1

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Wall mounted
Colour
Grey
Protection Certification
IP66

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
400 mm
Height
400 mm
Installation Depth
200 mm
