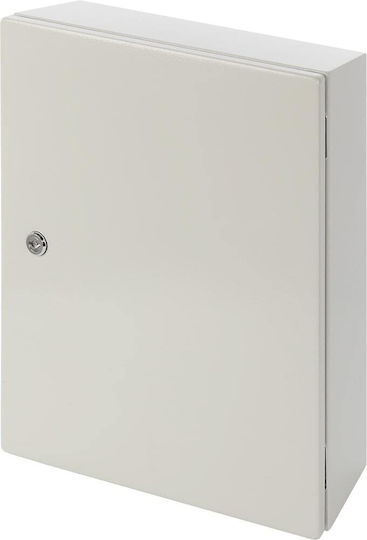

Pulsar Wall-Mounted Waterproof Electrical Panel W400xH500xD150mm
Fuse Box

Pulsar Wall-Mounted Waterproof Electrical Panel W400xH500xD150mm

The Pulsar AWOH405015 electrical enclosure is wall-mounted, metal and weatherproof, with an IP66 protection rating and IK10 mechanical resistance. The body and door are made of 1.2 mm-thick sheet...

The Pulsar AWOH405015 electrical enclosure is wall-mounted, metal and weatherproof, with an IP66 protection rating and IK10 mechanical resistance. The body and door are made of 1.2 mm-thick sheet metal, while the mounting plate is 1.5 mm thick. The door can be installed to open to the left or right.

  • Mounting: Wall-mounted
  • Material: Metal
  • Ingress protection:...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Pulsar AWOH405015 electrical enclosure is wall-mounted, metal and weatherproof, with an IP66 protection rating and IK10 mechanical resistance. The body and door are made of 1.2 mm-thick sheet metal, while the mounting plate is 1.5 mm thick. The door can be installed to open to the left or right.

  • Mounting: Wall-mounted
  • Material: Metal
  • Ingress protection: IP66
  • Mechanical resistance: IK10
  • Colour: Textured grey RAL 7035
  • Width: 400 mm
  • Height: 500 mm
  • Depth: 150 mm
  • Body and door thickness: 1.2 mm
  • Mounting plate thickness: 1.5 mm
  • Mounting plate dimensions: 350 × 465 mm
  • Lock: 1 double-bit lock
  • Corrosion protection: Yes
  • Operating conditions: From -10 °C to +40 °C, relative humidity 20%–90% without condensation

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Wall mounted
Material
Metallic
Colour
Grey
Protection Certification
IP66

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
400 mm
Height
500 mm
Installation Depth
150 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

137,90 €
17,00 €   shipping cost
