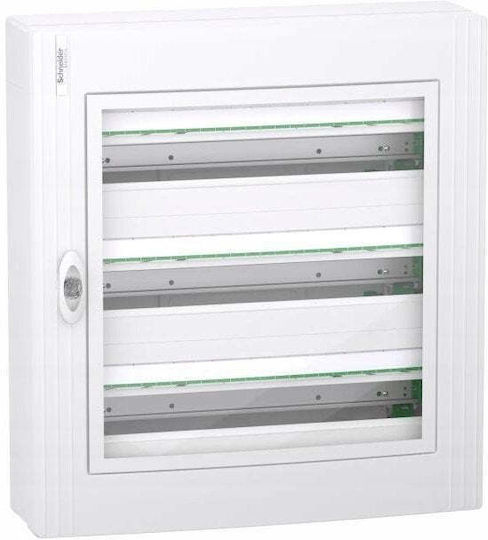

Schneider Electric Wall Mounted Electrical Panel, 3 Rows, 24 Elements
Fuse Box

Schneider Electric Wall Mounted Electrical Panel, 3 Rows, 24 Elements

Schneider PrismaSeT XS PSXS-3-24-NT-P surface-mounted electrical panel with a white thermoplastic enclosure and transparent door. It has 3 rows of 24 modules, each 18 mm wide, for a total of 72...

Schneider PrismaSeT XS PSXS-3-24-NT-P surface-mounted electrical panel with a white thermoplastic enclosure and transparent door. It has 3 rows of 24 modules, each 18 mm wide, for a total of 72 modules.

  • Dimensions: 550 600 168 mm (width height depth)
  • Internal depth: 155 mm
  • Degree of protection: IP40 and IK09 with the door closed
  • Insulation class: II
  • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Schneider PrismaSeT XS PSXS-3-24-NT-P surface-mounted electrical panel with a white thermoplastic enclosure and transparent door. It has 3 rows of 24 modules, each 18 mm wide, for a total of 72 modules.

  • Dimensions: 550 × 600 × 168 mm (width × height × depth)
  • Internal depth: 155 mm
  • Degree of protection: IP40 and IK09 with the door closed
  • Insulation class: II
  • Maximum insulation voltage: 400 V
  • Maximum operating current: 125 A
  • Power dissipation: 76 W
  • Operating temperature: -25°C to 60°C
  • DIN rails: symmetrical, removable
  • Earth connection: 1 terminal with 24 outputs; 3 × 25 mm² + 21 × 4 mm²

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Wall mounted
Number of Rows
3
Number of Elements per Row
24
Colour
Transparent
Protection Certification
IP40

Attributes

with Fuses
No
Waterproof
No
Cabinet
No
