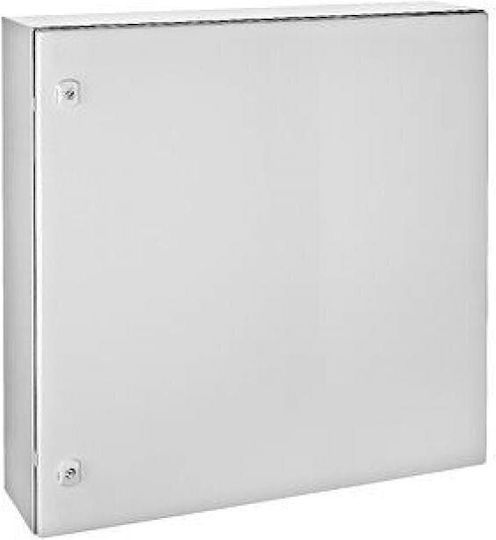

Elettrocanali Wall-Mounted Waterproof Electrical Panel W800xH600xD200mm
Fuse Box

Elettrocanali Wall-Mounted Waterproof Electrical Panel W800xH600xD200mm

ARGENTA metal enclosure made of 304L stainless steel, suitable for industrial installations. It features one door, two locks, and a mounting plate for installing components. The IP66 protection rating...

ARGENTA metal enclosure made of 304L stainless steel, suitable for industrial installations. It features one door, two locks, and a mounting plate for installing components. The IP66 protection rating helps protect against dust and water.

  • Dimensions: 800 600 200 mm
  • Depth: 203 mm
  • Sheet thickness: 2 mm
  • Ambient temperature: 25 °C to +60 °C
  • Maximum operating...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

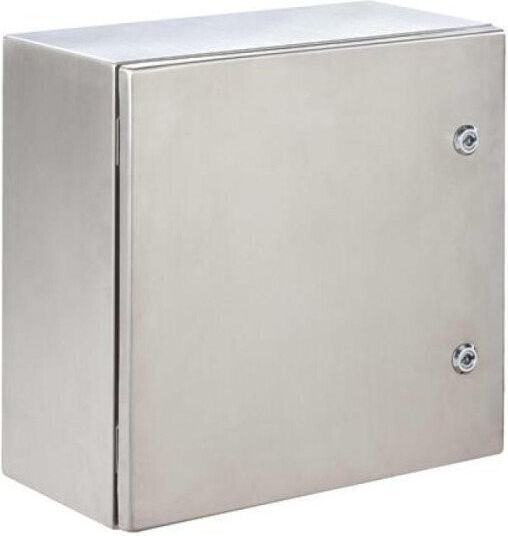

ARGENTA metal enclosure made of 304L stainless steel, suitable for industrial installations. It features one door, two locks, and a mounting plate for installing components. The IP66 protection rating helps protect against dust and water.

  • Dimensions: 800 × 600 × 200 mm
  • Depth: 203 mm
  • Sheet thickness: 2 mm
  • Ambient temperature: −25 °C to +60 °C
  • Maximum operating voltage: 1000 V AC / 1500 V DC
  • Impact resistance: IK10 (opaque door), IK09 (transparent door)
  • Sealing: silicone rubber
  • Finish: Scotch 320 satin
  • Standards: IEC 62208, IEC 61439-1
  • Certification: UL508A
  • Model code: INX806020

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Wall mounted
Material
Metallic
Colour
Grey
Protection Certification
IP66

Attributes

with Fuses
No
Waterproof
Yes
Cabinet
No

Dimensions

Width
800 mm
Height
600 mm
Installation Depth
200 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

1.006,90 €
59,00 €   shipping cost
