Main Specifications
- Colour
- Black
- Size
- Micro Tower
- Compatible Motherboard Type
- ITX, Micro ATX, Mini ITX
Dimensions
- Height
- 368 mm
- Width
- 285 mm
- Length
- 457 mm
Internal Spaces
- Maximum Graphics Card Length
- 410 mm
- Maximum Processor Heatsink Height
- 164 mm
Drive Bays
- Internal Hub 3.5"
- 1
- Internal Hub 2.5"
- 2
Fan Positions
- Front
- 2
- Rear
- 1
- Side
- 2
- Top Positions
- 3
- Bottom Positions
- 3
Water Cooling
- Radiator Position
- Top, Bottom, Front, Side
Specifications
- Connectivity
- Audio, USB 2.0, USB 3.0, USB 3.1
- Extras
- ARGB Lighting, Side Window, Pre-installed Fans
- Gaming
- Yes
- Airflow
- Yes
- Home & Office
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

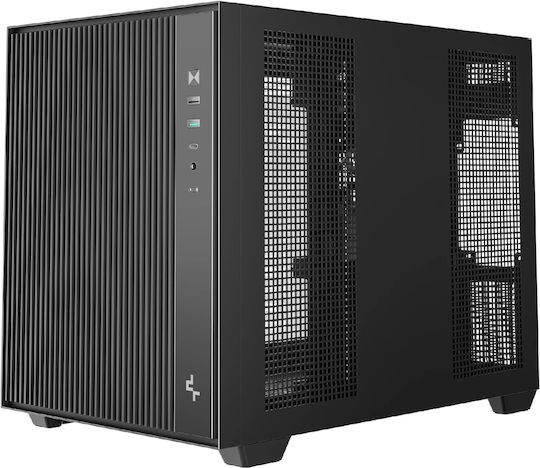

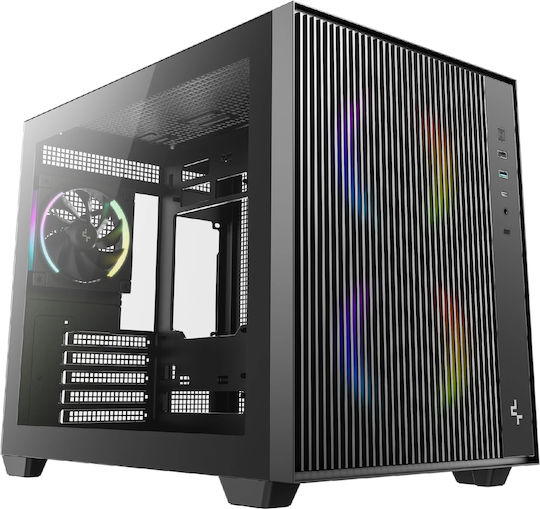

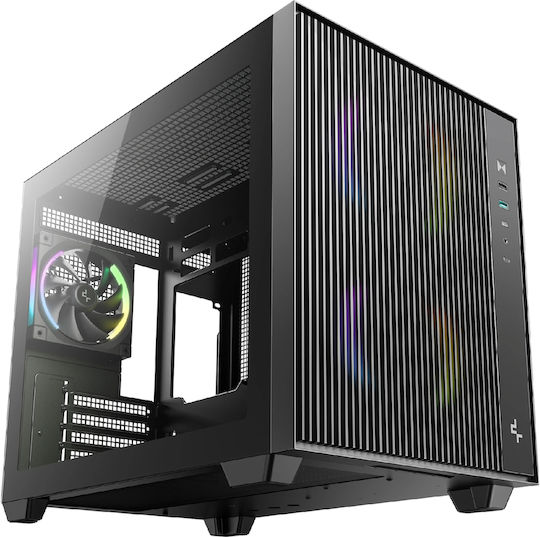

The DeepCool CG330 MESH 3F is a well-ventilated Micro-ATX computer case with a dual-chamber design, equipped with two 140 mm ARGB fans at the front and one 120 mm ARGB fan at the rear for ample airflow and vibrant lighting effects.
Designed for airflow

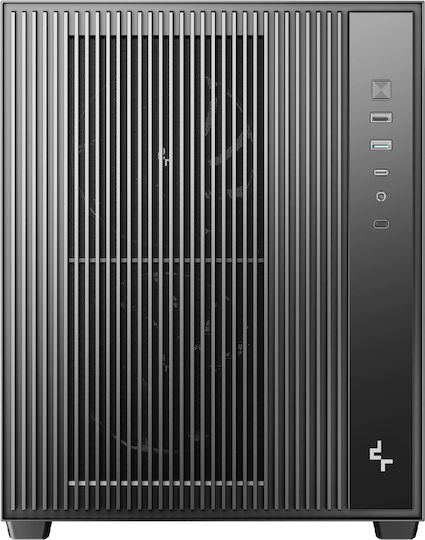

The front grille provides ample ventilation for improved cooling performance, while a fine dust filter on the inside helps keep the case clean.
Smart separation, clean build

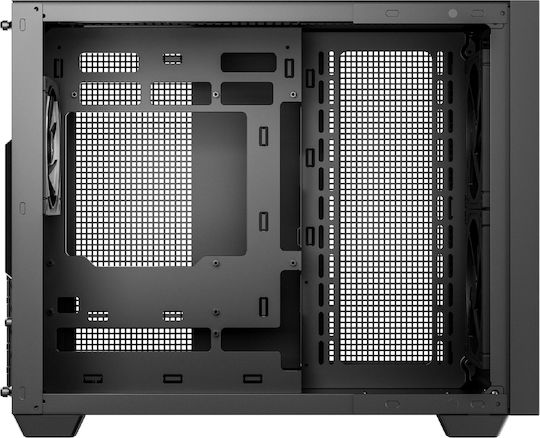

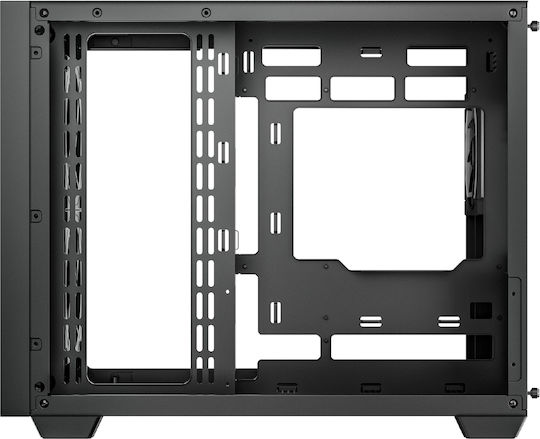

The dual-chamber layout separates the power supply and storage drives from the main airflow, improving cooling efficiency and making better use of the interior space.
Bigger, brighter, cooler

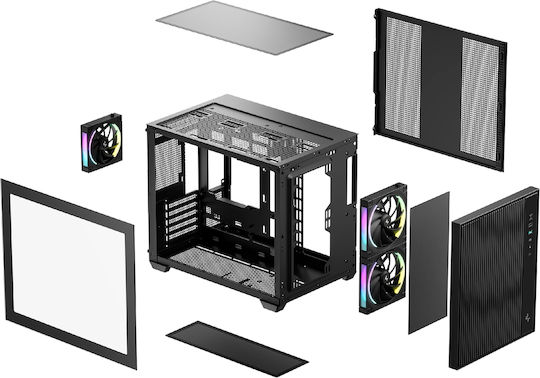

Two pre-installed 140 mm ARGB fans at the front deliver a generous supply of fresh air to the case. A 120 mm ARGB fan at the rear efficiently exhausts heat. This front-to-back airflow provides effective cooling right from the start.
Broad hardware support
Compact yet highly compatible, the CG330 MESH 3F supports GPUs up to 410 mm, ATX power supplies up to 200 mm, and CPU coolers up to 164 mm tall. Five PCIe slots accommodate most modern graphics and expansion cards. Storage options include space for one 3.5-inch HDD and two 2.5-inch SSDs, offering flexibility to balance capacity and speed.
Cooling from every side
Keep temperatures under control with the CG330 MESH 3F’s versatile cooling options. Install up to eleven 120 mm fans throughout the case to maximize airflow. Radiator support includes sizes up to 360 mm at the top or bottom and up to 280 mm on the side.
Specifications
- Product dimensions: 457 × 285 × 368 mm (L × W × H)

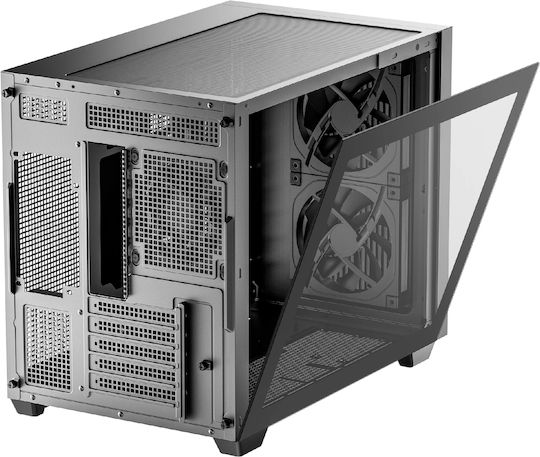

- Materials: ABS, SPCC, tempered glass
- Motherboard support: ITX / Micro-ATX / Micro-ATX (back-connect)
- Front I/O ports: 1 × USB 3.0, 1 × USB 2.0, 1 × USB Type-C, 1 × audio
- 3.5-inch drive bays: 1
- 2.5-inch drive bays: 2

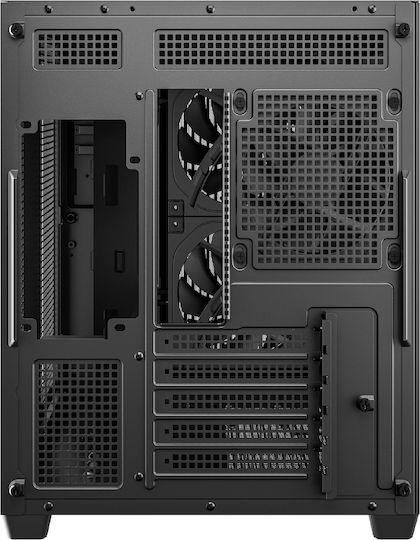

- Expansion slots: 5
- Pre-installed fans: Front: 2 × 140 mm; Rear: 1 × 120 mm
-
Fan support:

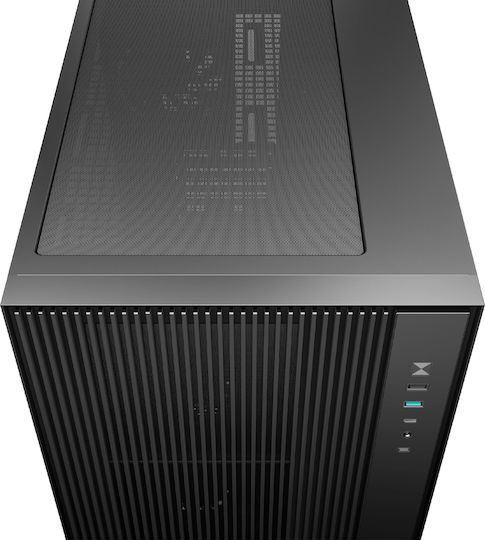

- Top: 3 × 120 mm / 2 × 140 mm
- Front: 2 × 120 mm / 2 × 140 mm
- Side: 2 × 120 mm / 2 × 140 mm
- Bottom: 3 × 120 mm
- Rear: 1 × 120 mm
-
Radiator support:
- Top: 120 / 140 / 240 / 280 / 360 mm
- Side: 120 / 140 / 240 / 280 mm
- Bottom: 120 / 240 / 360 mm
- Rear: 120 mm
- CPU cooler height limit: 164 mm
- GPU length limit: 410 mm
- Power supply type: ATX PS2 (maximum length: 200 mm) / SFX / SFX-L
