Wi-Fi Smart Switch Tuya App Ag-c101-wifi
Intermediate Switches

Wi-Fi Smart Switch Tuya App Ag-c101-wifi Code: AG-C101-WiFi

WiFi Smart Switch with Tuya App – DC 9–30V

Convert your garage door opener into a WiFi remote-control system with the WiFi Wireless Smart Switch.

The device connects to the push-button command input...

WiFi Smart Switch with Tuya App – DC 9–30V

Convert your garage door opener into a WiFi remote-control system with the WiFi Wireless Smart Switch.

The device connects to the push-button command input on the control board and lets you send commands from your phone using the Tuya Smart or Smart Life app.

Key Features
  • Remote control via WiFi: Control the opener...
See full description See full description

Top specs

  • Connectivity

    Wi-Fi

    The most common connectivity option for individual switches, as it connects directly to the router.

    RF

    Wireless control via radio frequencies.

  • Usage

    Garage door

    They allow remote control (opening and closing) of garage doors.

  • Compatible Application

    The compatible app that you download to your mobile phone to control the switch remotely.

  • Dry Contact

    Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.

  • With Remote Control

    It allows you to control the switch remotely with a remote control, without needing your smartphone.
  • See all
20 00 €
Delivery Tue, 03 Nov - Thu, 05 Nov
14,00 €   shipping cost
Sent from Greece
From NextSystems
Greece
20+ pieces
See Sockets & Switches on the page of NextSystems

Learn more about invoicing
Review the product
Product report

Description

Description

WiFi Smart Switch with Tuya App – DC 9–30V

Convert your garage door opener into a WiFi remote-control system with the WiFi Wireless Smart Switch.

The device connects to the push-button command input on the control board and lets you send commands from your phone using the Tuya Smart or Smart Life app.

Key Features
  • Remote control via WiFi: Control the opener from your phone over the Internet.
  • Control via the Tuya app: Manage the device using a compatible smartphone.
  • Built-in output relay: NO, COM and NC terminals for connection to a suitable control circuit.
  • Wide supply voltage range: DC 9–30V, suitable for a wide range of automation applications.
  • 433 MHz RF wireless communication: Additional wireless control option using a compatible remote control.
  • Easy integration: Designed for remote-control and automation applications.
Typical Applications
  • Garage doors and sliding gates.
  • Control boards with a push-button command input.
  • Automation and remote-control systems.
  • Other applications with a compatible control input.

When used with garage doors, the device must be set to momentary (pulse) operation, if supported, and connected according to the instructions for the opener’s control board.

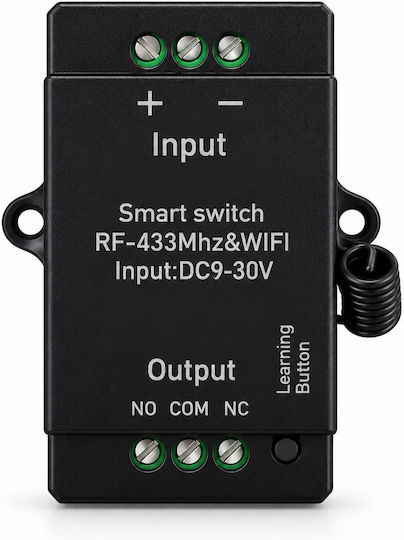

Key Technical Specifications
  • Product type: WiFi Wireless Smart Relay
  • App: Tuya Smart / Smart Life*
  • Supply voltage: DC 9–30V
  • WiFi connectivity: 2.4 GHz*
  • RF wireless frequency: 433 MHz
  • Output terminals: NO / COM / NC
  • Power terminals: + / −
  • Use: Remote control of automation systems
  • Installation: Wired connection to the control board

Installation note: Before connecting, verify that the output is truly a volt-free (dry contact) output, that the control board accepts a momentary contact, and that the device supports pulse operation.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
AG-C101-WiFi

Specifications

Switch Type
Smart Switch
Usage
Garage door

Usage

Garage door

They allow remote control (opening and closing) of garage doors.

Smart Attributes

Connectivity
Wi-Fi, RF

Connectivity

Wi-Fi

The most common connectivity option for individual switches, as it connects directly to the router.

RF

Wireless control via radio frequencies.

Additional Features

With Remote Control
Yes

With Remote Control

It allows you to control the switch remotely with a remote control, without needing your smartphone.
Wiring
-
Compatible Application
Tuya Smart

Compatible Application

The compatible app that you download to your mobile phone to control the switch remotely.
Pieces
1

Features

Dimmer
No

Dimmer

It allows you to adjust the brightness of the lighting instead of simple on/off operation. Bulbs that support dimmable function are required.
Dry Contact
Yes

Dry Contact

Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.
Consumption Measurement
No

Consumption Measurement

It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

WiFi Smart Switch with Tuya App – DC 9–30V

Convert your garage door opener into a WiFi remote-control system with the WiFi Wireless Smart Switch.

The device connects to the push-button command input on the control board and lets you send commands from your phone using the Tuya Smart or Smart Life app.

Key Features
  • Remote control via WiFi: Control the opener from your phone over the Internet.
  • Control via the Tuya app: Manage the device using a compatible smartphone.
  • Built-in output relay: NO, COM and NC terminals for connection to a suitable control circuit.
  • Wide supply voltage range: DC 9–30V, suitable for a wide range of automation applications.
  • 433 MHz RF wireless communication: Additional wireless control option using a compatible remote control.
  • Easy integration: Designed for remote-control and automation applications.
Typical Applications
  • Garage doors and sliding gates.
  • Control boards with a push-button command input.
  • Automation and remote-control systems.
  • Other applications with a compatible control input.

When used with garage doors, the device must be set to momentary (pulse) operation, if supported, and connected according to the instructions for the opener’s control board.

Key Technical Specifications
  • Product type: WiFi Wireless Smart Relay
  • App: Tuya Smart / Smart Life*
  • Supply voltage: DC 9–30V
  • WiFi connectivity: 2.4 GHz*
  • RF wireless frequency: 433 MHz
  • Output terminals: NO / COM / NC
  • Power terminals: + / −
  • Use: Remote control of automation systems
  • Installation: Wired connection to the control board

Installation note: Before connecting, verify that the output is truly a volt-free (dry contact) output, that the control board accepts a momentary contact, and that the device supports pulse operation.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
AG-C101-WiFi

Specifications

Switch Type
Smart Switch
Usage
Garage door

Usage

Garage door

They allow remote control (opening and closing) of garage doors.

Smart Attributes

Connectivity
Wi-Fi, RF

Connectivity

Wi-Fi

The most common connectivity option for individual switches, as it connects directly to the router.

RF

Wireless control via radio frequencies.

Additional Features

With Remote Control
Yes

With Remote Control

It allows you to control the switch remotely with a remote control, without needing your smartphone.
Wiring
-
Compatible Application
Tuya Smart

Compatible Application

The compatible app that you download to your mobile phone to control the switch remotely.
Pieces
1

Features

Dimmer
No

Dimmer

It allows you to adjust the brightness of the lighting instead of simple on/off operation. Bulbs that support dimmable function are required.
Dry Contact
Yes

Dry Contact

Dry Contact. It gives you the ability to safely control devices that have their own power supply. It does not transfer current but allows you to control them remotely, without causing a short circuit or damage.
Consumption Measurement
No

Consumption Measurement

It allows you to see in real time how much electricity your connected device is consuming and to keep a usage history, through your smartphone and the compatible app.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
