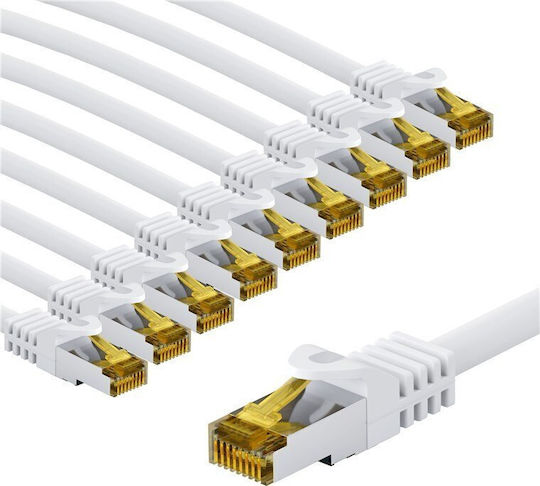

CAT cables transmit high-quality signals at high speeds, ensuring a stable connection at all times. They feature high-quality internal conductors, robust cable sheathing and precisely fitted connectors. Our solutions are particularly suitable for transmitting high-resolution video at 8K @ 60 Hz and 4K @ 120 Hz.

• AWG: 26/7 (stranded wire)
• Bend radius: > 48 mm
• Specification: CAT 7
• Cable sheath diameter: approx. 6.2 mm
• Shielding class: S/FTP (PiMF)
• Number of shields: 2 x
• Pinout: EIA/TIA-568 B
• Markings: CE, WEEE
• Operating temperature up to: 65 °C
• Operating temperature from: -20 °C
• Maximum bandwidth: 500 MHz
• Kink protection: both ends
• Cable type: Cat 7 patch cable
• Cable sheath material: LSZH
• Inner conductor material: CU (copper)
• LSZH compliant: yes
• Shield type 1: foil (aluminium), PiMF
• Shield type 2: braided (aluminium), overall shield
• Connector contact material: gold-plated, 50 µm
• Shielded connection: yes
• Connector type: RJ45 male (8P8C)
• Connector 2 type: RJ45 male (8P8C)
• Locking protection: both ends
• Colour: white
• Packaging unit: 10 pieces in a polybag
• Special feature: Length indicator on the connector
• Cable length: 1 m
