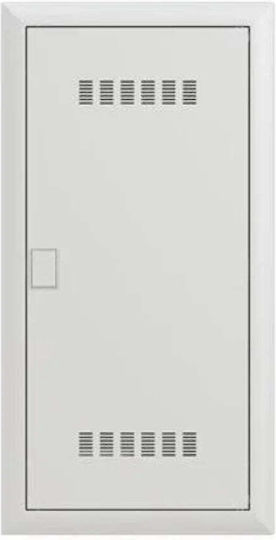

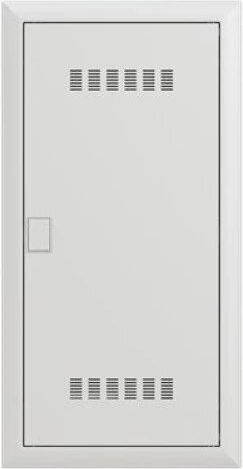

Abb Recessed Electrical Panel, 4 Rows, 12 Modules W747xH384xD97mm
Fuse Box

Abb Recessed Electrical Panel, 4 Rows, 12 Modules W747xH384xD97mm

The flush-mounted ABB UK600 multimedia distribution board has 48 modules across 4 rows and is suitable for installation in plasterboard walls. Its steel enclosure is finished in RAL 9016, and the...

The flush-mounted ABB UK600 multimedia distribution board has 48 modules across 4 rows and is suitable for installation in plasterboard walls. Its steel enclosure is finished in RAL 9016, and the single door opens up to 120°.

  • Type: UK640MV
  • Dimensions: 747 x 384 x 97 mm
  • Protection rating: IP30
  • Protection class: II
  • Operating voltage: 400 V AC
  • Maximum current:...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The flush-mounted ABB UK600 multimedia distribution board has 48 modules across 4 rows and is suitable for installation in plasterboard walls. Its steel enclosure is finished in RAL 9016, and the single door opens up to 120°.

  • Type: UK640MV
  • Dimensions: 747 x 384 x 97 mm
  • Protection rating: IP30
  • Protection class: II
  • Operating voltage: 400 V AC
  • Maximum current: 63 A
  • Heat resistance: 850 °C
  • Material: sheet steel
  • Integrated DIN rail
  • Standards: EN 60670-24, IK 07
  • Closure type: Push button
  • Code: 2CPX031392R9999

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Placement
Walled
Number of Rows
4
Number of Elements per Row
12
Colour
White
Protection Certification
IP30

Attributes

with Fuses
No
Waterproof
No
Cabinet
No

Dimensions

Width
747 mm
Height
384 mm
Installation Depth
97 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

253,90 €
17,00 €   shipping cost
