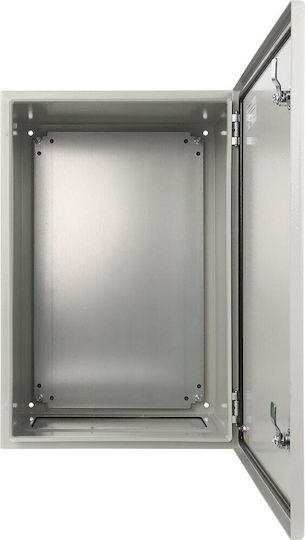

The metal, watertight enclosure Pulsar AWOH406030 protects installations from dust, water and mechanical stress. It features:
- Mounting plate
- Two double-bit locks
- Door that can be fitted on the left or right
Suitable for SSWiN, CCTV and KD systems.
External dimensions: 400 mm (width) x 600 mm (height) x 300 mm (depth)
Plate dimensions: 350 mm (width) x 565 mm (height)
Body thickness: 1.2 mm
Plate thickness: 1.5 mm
Protection rating: IP66
Mechanical resistance: IK10
Corrosion protection: yes
Colour: RAL7035 (textured grey)
Operating temperature: -10°C to +40°C
Operating humidity: 20%...90%, non-condensing
Locks: 2 x double-bit lock
