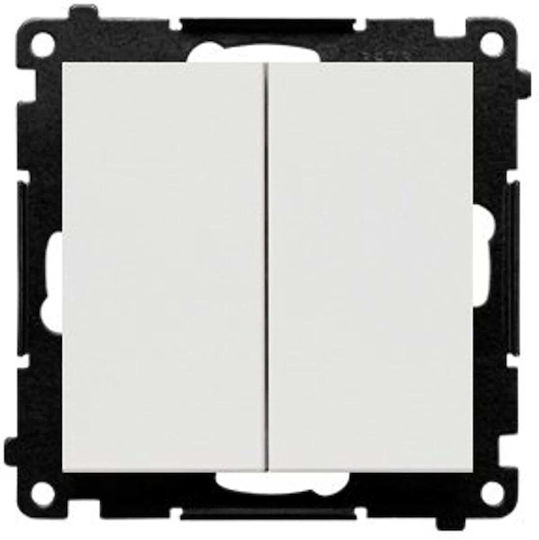

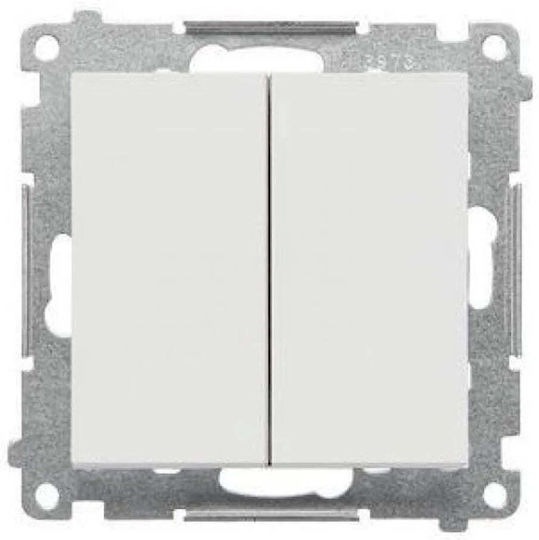

Kontakt-Simon Waterproof Recessed Double Wall Switch with Grey Frame
Electrical Wall Switches

Kontakt-Simon Waterproof Recessed Double Wall Switch with Grey Frame Code: TP2.01/114

Double momentary push button without icon from the Simon 55 series, in matte light grey (RAL 7047). Designed for flush mounting and equipped with quick-connect terminals.

  • Rated current: 10 AX
  • Rated...

Double momentary push button without icon from the Simon 55 series, in matte light grey (RAL 7047). Designed for flush mounting and equipped with quick-connect terminals.

  • Rated current: 10 AX
  • Rated voltage: 250 V
  • Connection type: self-clamping terminals
  • Degree of protection: IP20/IP44 (additional frame sealing is required for IP44)
  • Material: halogen-free PC...
See full description See full description

Top specs

See all

  • Protection Certification

    IP44

    Protection against water splashes from any direction. The standard "waterproof" for bathrooms.

  • Item

    Basic

    The classic wall switch for simple commands, with a rocker-type button, ideal for turning lights or other electrical devices on and off.
  • Number of Switches Two-Way

Learn more about invoicing
Review the product
Product report

Description & Specifications

Double momentary push button without icon from the Simon 55 series, in matte light grey (RAL 7047). Designed for flush mounting and equipped with quick-connect terminals.

  • Rated current: 10 AX
  • Rated voltage: 250 V
  • Connection type: self-clamping terminals
  • Degree of protection: IP20/IP44 (additional frame sealing is required for IP44)
  • Material: halogen-free PC plastic
  • Operation: rocker switch
  • Buttons: 2
  • Poles: 2
  • Contacts: two normally open (NO)
  • Dimensions: height 75 mm, width 75 mm, depth 39.5 mm
  • Installation depth: 26 mm
  • Individual package weight: 0.059 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
TP2.01/114

Specifications

Placement
Recessed

Placement

Recessed

It is installed inside the wall in special boxes, offering an elegant and flush result. It is the ideal choice for homes and offices where aesthetics are a priority; however, its installation requires preparatory work with wall chasing and embedded wiring.
Switch Type
Complete

Switch Type

Complete

The mechanism, front panel, and decorative frame of the switch are included.
Switch Type
Basic

Switch Type

Basic

The classic wall switch for simple commands, with a rocker-type button, ideal for turning lights or other electrical devices on and off.
Number of Switches
Two-Way
Colour
Grey

Functions

Aller Retour
No

Aller Retour

Allows you to control the same light from two different locations. It is ideal for the beginning and end of a corridor or for the entrance of the room and your bedside table.
Medium
No

Medium

It is used when you want to control the same light from three or more locations (e.g. in large corridors or staircases). It always works together with two Aller-Retour switches at the ends of the installation.
Illuminated
No

Illuminated

Emits light in order to indicate whether the switch is activated or to help locate it in the dark.
Waterproof
Yes
Protection Certification
IP44

Protection Certification

IP44
Protection against water splashes from any direction. The standard "waterproof" for bathrooms.
Battery-powered
No

Battery-powered

They offer complete flexibility in placement. They are a practical choice for making your home smart easily and quickly. They do not require complex installation, as they are usually wireless and can be mounted anywhere with simple adhesive tape.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
