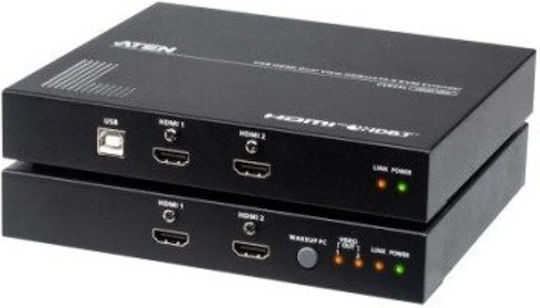

The ATEN CE824 KVM & Data Switch is a KVM extender system featuring HDMI Dual View and HDBaseT 2.0 technology. It transmits HDMI and USB signals over a single cable, while supporting two displays and remote KVM control. Wired transmission also includes stereo audio and RS-232.

In standard mode, it supports resolutions up to 4K or 1080p over distances of up to 100 m. Long Reach Mode allows transmission of 1080p or 720p up to 150 m over Cat 6/6A cable. The system consists of a transmitter unit and a receiver unit.

• Connectivity: USB, HDMI, HDBaseT, RS-232
• Transmission technology: HDBaseT 2.0
• Resolution: Up to 4096 x 2160 at 30 Hz (4:4:4)
• Display support: 2 displays
• Transmission distance: Up to 100 m in standard mode, up to 150 m in Long Reach Mode
• Cable: Cat 6/6A
• USB ports: 4 x USB 2.0 Type-A
• Audio: 2-channel stereo
• Transmitter power consumption: Up to 5.98 W
• Receiver power consumption: Up to 10.32 W
• Transmitter dimensions: 15.6 cm wide x 17.4 cm deep x 2.88 cm high
• DC jack: Screw-locking
• ESD protection: 8 kV/15 kV
• Rack mounting: Supported
