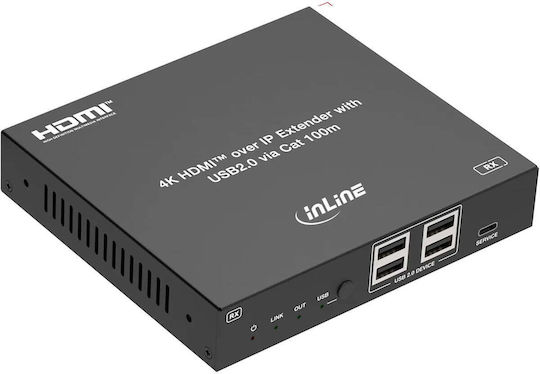

The InLine KVM & Data Switch is an HDMI and USB extender over a network, with support for infrared signals. It transmits signals over distances of up to 100 m and works either with a direct point-to-point connection or via a Gigabit switch. It also allows multiple receivers to be connected to one transmitter without manual configuration.

It supports resolutions of up to 4K at 60 Hz, HDMI 2.0b, and HDCP 2.3, 2.2, and 1.x. Infrared transmission is bidirectional, and the metal housing is black.

• Type: KVM and data switch with extender function
• Connectivity: HDMI, USB, USB 2.0
• Resolution: 3840 × 2160
• Refresh rate: Up to 60 Hz
• HDMI version: 2.0b
• Video bandwidth: 18 Gb/s
• HDCP: 2.3, 2.2, and 1.x
• Color depth: 8, 10, and 12 bit
• Color spaces: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• HDR: HDR10, HDR10+, Dolby Vision, and HLG
• Audio via HDMI: LPCM 7.1CH, Dolby 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, and DTSX
• USB 2.0 bandwidth: 480 Mb/s
• Network speed: 1000 Mb/s
• Transmission distance: Up to 100 m
• Recommended cable: CAT6
• Infrared transmission: Bidirectional, 20–60 kHz
• Housing material: Metal
• Color: Black
• Operating temperature: 0 °C to +40 °C
• Storage temperature: −20 °C to +60 °C
• Operating humidity: 20–80%, non-condensing
• Storage humidity: 10–90%, non-condensing
• Power supply: AC 100–240 V, 50–60 Hz
• Power adapter output: DC 12.0 V / 1.0 A
• Maximum power: 12.0 W
• Package contents: 1 receiver, 1 × 1.5 m IR transmitter cable, 1 × 1.5 m IR receiver cable, 1 power adapter, 2 mounting brackets, 4 M3 × 6 screws, and 1 manual in German and English
