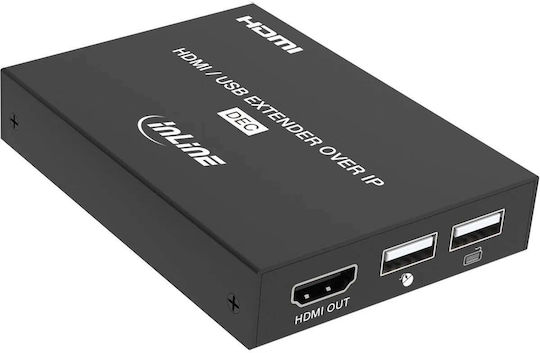

The InLine KVM & Data Switch is a KVM extender over IP receiver for transmitting Full HD HDMI signals over distances of up to 150 m. It enables remote control via a USB keyboard and mouse, while the IR function lets you control the HDMI source from a distance. Multiple receivers can operate simultaneously with one transmitter.

• Connections: HDMI, RJ-45, 2 × USB-A
• Standards: HDMI 1.4, HDCP 1.4
• Maximum resolution: 1920 × 1080 @ 60 Hz
• Maximum video bandwidth: 6.75 Gb/s
• Maximum transmission distance: 150 m
• USB version: USB 1.1
• Audio: LPCM 2.0
• IR frequency: 20 kHz to 60 kHz
• Color: Black
• Operating temperature: −10 °C to +50 °C
• Storage temperature: −20 °C to +60 °C
• Operating humidity: 20–90%, non-condensing
• Power supply: AC 100–240 V / 50–60 Hz, DC 5.0 V / 1.0 A, max. 5.0 W
• Package contents: 1 KVM receiver, 1.5 m IR cable, DC 5.0 V / 1.0 A power adapter, manual in German and English
