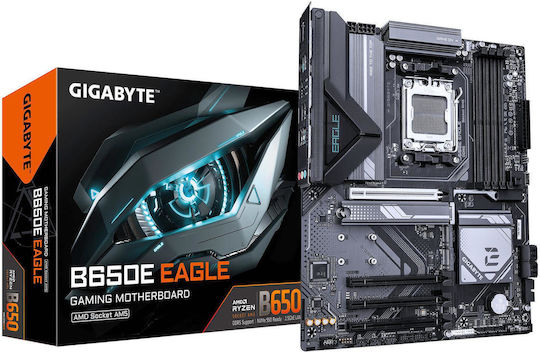

B650E Eagle Motherboard ATX with AMD AM5 Socket
Motherboards

B650E Eagle Motherboard ATX with AMD AM5 Socket

Key features:

  • Socket AM5 & AMD B650 Chipset
  • DDR5 RAM support up to 8200MHz
  • Wi-Fi 6E, BT 5.3 & 2.5GbE LAN
  • PCIe 5.0 x16 & M.2 PCIe 5.0
  • ATX Form Factor (30.5x24.4cm)
See full description

Top specs

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

Gigabyte B650E EAGLE WIFI6E motherboard in ATX form factor with AMD AM5 socket. Supports AMD Ryzen 9000, 8000, and 7000 Series processors. Features 4 DDR5 RAM slots up to 256GB with speeds up to 8200MHz (O.C.). Includes a PCIe 5.0 x16 slot for graphics cards and an M.2 PCIe 5.0 slot. Equipped with MediaTek Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5GbE LAN. Provides DisplayPort 1.4 and HDMI 2.1 video outputs with HDR support. Includes USB Type-C, USB 3.2 Gen 2 ports, and Q-Flash Plus functionality. An ideal choice for high performance, gaming, and modern connectivity.

Processor and DDR5 Memory Support

The Gigabyte B650E EAGLE WIFI6E motherboard is equipped with the Socket AM5 and the AMD B650 chipset, offering full compatibility with the AMD Ryzen 9000, 8000, and 7000 Series processors. In terms of memory, it features 4 DDR5 DIMM slots with support for a total capacity of up to 256 GB in a Dual Channel configuration. Its architecture allows overclocking with frequencies reaching up to 8200 MT/s (O.C.), while supporting AMD EXPO and Extreme Memory Profile (XMP) profiles for automatic and stable optimization of memory module performance.

PCIe 5.0 Expansion and Storage Slots

For the graphics card, there is one primary PCI Express x16 slot integrated into the processor, which supports PCIe 5.0 x16 speeds with Ryzen 9000/7000 processors. In terms of storage, the motherboard features a total of 3 M.2 slots, one of which supports M.2 PCIe 5.0 x4/x2 SSDs, ensuring top data transfer speeds. In addition, it includes 4 SATA 6Gb/s ports, as well as full support for RAID 0, RAID 1, RAID 5 and RAID 10 arrays for NVMe devices, offering increased security and speed.

High-Speed Wireless and Wired Networking

The motherboard integrates the advanced wireless MediaTek Wi-Fi 6E MT7902 module, which operates in the 2.4, 5 and 6 GHz frequency bands with support for the 11ax 160MHz standard, delivering ultra-fast wireless connectivity with low latency. At the same time, it features built-in Bluetooth 5.3 for easy connection of peripheral devices. As for wired connectivity, the Realtek 2.5GbE LAN network card provides speeds of up to 2.5 Gbps, ensuring smooth online gaming and fast file transfer on the local network.

Connectivity, I/O Ports and Audio

On the rear panel, the motherboard features USB Type-C (USB 3.2 Gen 1), USB 3.2 Gen 2 Type-A ports, DisplayPort 1.4 video outputs (up to 3840x2160@144Hz) and HDMI 2.1 (up to 4096x2160@60Hz with HDR), as well as the practical Q-Flash Plus button for easy BIOS upgrading without the need to install a CPU or memory. For audio, it uses the Realtek Audio CODEC with support for 7.1-channel High Definition Audio, while in the area of cooling and lighting, multiple headers are provided for fans, modular liquid cooling pumps, and Addressable RGB Gen2 LED strips.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD B650E

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4800, 5200, 5600OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7200OC, 7600OC, 7800OC, 7900OC, 7950OC, 8000OC, 8200OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
2 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
Yes
Wi-Fi/Bluetooth
No
Wi-Fi Generation
Wi-Fi 6E
Extra
Clear CMOS button, RGB Header

Extra

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD B650E

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4800, 5200, 5600OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7200OC, 7600OC, 7800OC, 7900OC, 7950OC, 8000OC, 8200OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
2 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
Yes
Wi-Fi/Bluetooth
No
Wi-Fi Generation
Wi-Fi 6E
Extra
Clear CMOS button, RGB Header

Extra

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

Gigabyte B650E EAGLE WIFI6E motherboard in ATX form factor with AMD AM5 socket. Supports AMD Ryzen 9000, 8000, and 7000 Series processors. Features 4 DDR5 RAM slots up to 256GB with speeds up to 8200MHz (O.C.). Includes a PCIe 5.0 x16 slot for graphics cards and an M.2 PCIe 5.0 slot. Equipped with MediaTek Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5GbE LAN. Provides DisplayPort 1.4 and HDMI 2.1 video outputs with HDR support. Includes USB Type-C, USB 3.2 Gen 2 ports, and Q-Flash Plus functionality. An ideal choice for high performance, gaming, and modern connectivity.

Processor and DDR5 Memory Support

The Gigabyte B650E EAGLE WIFI6E motherboard is equipped with the Socket AM5 and the AMD B650 chipset, offering full compatibility with the AMD Ryzen 9000, 8000, and 7000 Series processors. In terms of memory, it features 4 DDR5 DIMM slots with support for a total capacity of up to 256 GB in a Dual Channel configuration. Its architecture allows overclocking with frequencies reaching up to 8200 MT/s (O.C.), while supporting AMD EXPO and Extreme Memory Profile (XMP) profiles for automatic and stable optimization of memory module performance.

PCIe 5.0 Expansion and Storage Slots

For the graphics card, there is one primary PCI Express x16 slot integrated into the processor, which supports PCIe 5.0 x16 speeds with Ryzen 9000/7000 processors. In terms of storage, the motherboard features a total of 3 M.2 slots, one of which supports M.2 PCIe 5.0 x4/x2 SSDs, ensuring top data transfer speeds. In addition, it includes 4 SATA 6Gb/s ports, as well as full support for RAID 0, RAID 1, RAID 5 and RAID 10 arrays for NVMe devices, offering increased security and speed.

High-Speed Wireless and Wired Networking

The motherboard integrates the advanced wireless MediaTek Wi-Fi 6E MT7902 module, which operates in the 2.4, 5 and 6 GHz frequency bands with support for the 11ax 160MHz standard, delivering ultra-fast wireless connectivity with low latency. At the same time, it features built-in Bluetooth 5.3 for easy connection of peripheral devices. As for wired connectivity, the Realtek 2.5GbE LAN network card provides speeds of up to 2.5 Gbps, ensuring smooth online gaming and fast file transfer on the local network.

Connectivity, I/O Ports and Audio

On the rear panel, the motherboard features USB Type-C (USB 3.2 Gen 1), USB 3.2 Gen 2 Type-A ports, DisplayPort 1.4 video outputs (up to 3840x2160@144Hz) and HDMI 2.1 (up to 4096x2160@60Hz with HDR), as well as the practical Q-Flash Plus button for easy BIOS upgrading without the need to install a CPU or memory. For audio, it uses the Realtek Audio CODEC with support for 7.1-channel High Definition Audio, while in the area of cooling and lighting, multiple headers are provided for fans, modular liquid cooling pumps, and Addressable RGB Gen2 LED strips.

Manufacturer

Manufacturer Details

Warnings & Safety Information
