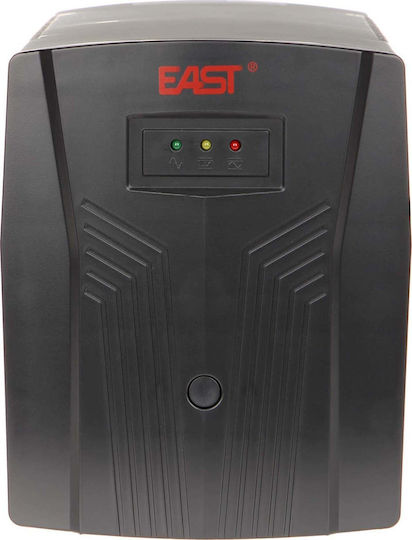

The EAST AT-UPS1200BK-LED UPS provides 720 W of active power and 1200 VA of apparent power, with a 230 VAC output and a simulated sine wave. It supports active power factor correction (APFC) power supplies and features an automatic voltage regulator (AVR), EMI and RFI filtering, and protection against surges, overloads, and overcharging.
Automatic frequency detection operates at 50 / 60 Hz. Transfer time is typically 2–7 ms and up to 10 ms. Charging the battery to 90% takes 8 hours. The UPS restarts automatically when mains power is restored, is generator-compatible, and features an audible alarm.
- Power: 720 W
- Apparent power: 1200 VA
- Type: Tower
- Output: 230 VAC ± 10%, simulated sine wave
- Input frequency: 50 / 60 Hz with automatic detection
- Output frequency: 50 / 60 Hz ± 1%
- Input voltage: 173–287 VAC
- Transfer time: 2–7 ms typical, up to 10 ms
- Charging time: 8 hours to 90% capacity
- Batteries: 2 × 12 V / 7 Ah
- Backup time: 57 minutes at 100 W, 14 minutes at 300 W, and 8 minutes at 500 W

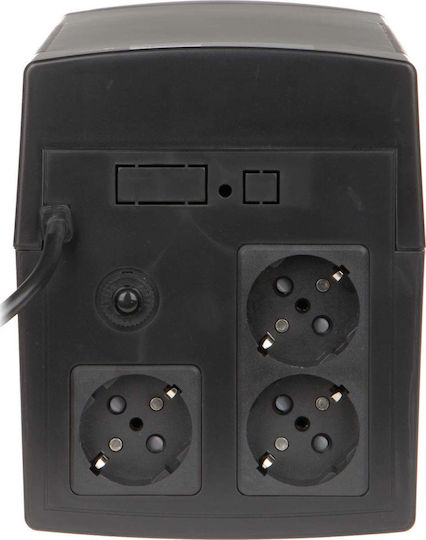

- Outlets: 3 Schuko (CEE 7/3)
- USB ports: 1
- Protections: Fuse, surge, overload, and overcharge protection
- Indicators: LED and audible alarm
- Voltage regulator: Automatic (AVR)
- Filter: EMI and RFI
- Restart: Automatic when mains power is restored
- Compatibility: APFC power supplies and generators
- Operating temperature: 0–40 °C
- Operating relative humidity: 20–90%
- Weight: 8.5 kg
- Dimensions: 346 × 173 × 140 mm
Dimensions
- Power (VA)
- 1200 VA
- Power (Watt)
- 720 W
- Size
- Tower
- Display Screen
- LED Indicators
Connectivity
- USB
- Yes
- Plug Type
- Schuko
