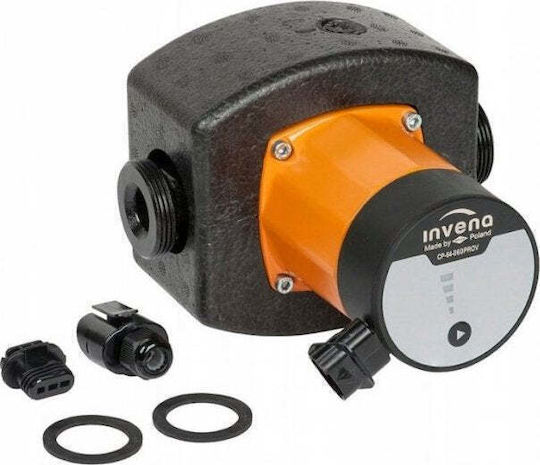

Un Electronic Circulation Heating Pump 25/60 6/4'' 1 Pc Cp-64-060-W
Central Heating Parts & Accessories

Un Electronic Circulation Heating Pump 25/60 6/4'' 1 Pc Cp-64-060-W Code: CP-64-060-W

The electronic circulating pump INVENA PROV CP-64 is intended for central heating installations and operates with heating installation water according to the VDI 2035 standard or with a water/glycol...

The electronic circulating pump INVENA PROV CP-64 is intended for central heating installations and operates with heating installation water according to the VDI 2035 standard or with a water/glycol mixture in a ratio of 11.

  • Connection distance: 180 mm
  • Connection size: 6/4”
  • Maximum flow rate: 3,600 l/h
  • Maximum head: 6.0 m
  • P1 power consumption: 0.18 / 0.20...
See Description & Specifications See Description & Specifications

Top specs

  • Maximum Pressure 10 bar

Learn more about invoicing
Review the product
Product report

Description & Specifications

The electronic circulating pump INVENA PROV CP-64 is intended for central heating installations and operates with heating installation water according to the VDI 2035 standard or with a water/glycol mixture in a ratio of 11.

  • Connection distance: 180 mm
  • Connection size: 6/4”
  • Maximum flow rate: 3,600 l/h
  • Maximum head: 6.0 m
  • P1 power consumption: 0.18 / 0.20 kW
  • Supply voltage: 1 x 230V 50 Hz
  • Noise level: -
  • Protection degree: IP 42
  • EEI: 0.18 / 0.20
  • Thermal class: TF 110
  • Ambient temperature: 0°C to 40°C
  • Medium temperature: +5 to 110°C
  • Maximum installation pressure: 10 bar (1 MPa)

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
Product Number
CP-64-060-W

Dimensions

Type
-
Compatibility
for Circulator
Construction Material [Pharmaceutical]
-
Smart / WiFi
No

Technical Parameters

Thread / Cross-section
-
Power
-
Maximum Pressure
10 bar

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

274,90 €
17,00 €   shipping cost
