Wired Motion Sensor 140° Range 12m
Motion Sensors

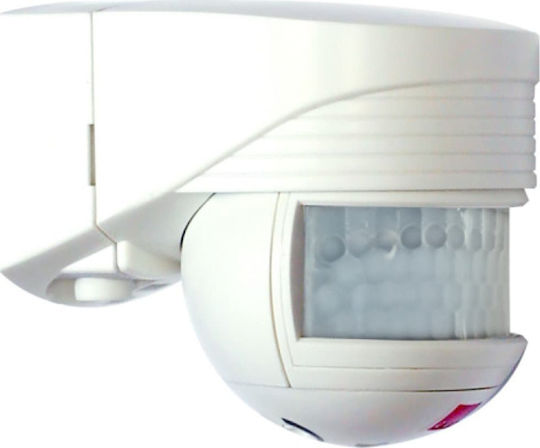

Wired Motion Sensor 140° Range 12m

LC-CLICK-140 motion sensor in white color, with a adjustable head and the ability to limit the detection area with covers. Installation is carried out via a snap-on system into a standard...

LC-CLICK-140 motion sensor in white color, with a adjustable head and the ability to limit the detection area with covers. Installation is carried out via a snap-on system into a standard flush-mounted box.

  • Manufacturer: B.E.G.
  • Power supply: 110 – 240 V AC, 50 / 60 Hz
  • Dimensions: 103 x 78 x 80 mm
  • Nominal power: approx. 0.4 W
  • Horizontal detection range: 140°...
See full description See full description

Top specs

  • Login

    Wired

    It connects to the installation system via cable.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • Protection Certification

    IP44

    Suitable for indoor and outdoor areas. Provides protection against the intrusion of objects larger than 1 mm and withstands light rain or water splashes from any direction, making it ideal for balconies and terraces.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

LC-CLICK-140 motion sensor in white color, with a adjustable head and the ability to limit the detection area with covers. Installation is carried out via a snap-on system into a standard flush-mounted box.

  • Manufacturer: B.E.G.
  • Power supply: 110 – 240 V AC, 50 / 60 Hz
  • Dimensions: 103 x 78 x 80 mm
  • Nominal power: approx. 0.4 W
  • Horizontal detection range: 140°
  • Range: max. 12 m (sideways), max. 4 m (frontally)
  • Detection area at 2.5 m mounting height: 170 m²
  • Protection rating: IP44
  • Class: II
  • Operating temperature: -25 °C to +50 °C
  • Enclosure: polycarbonate, UV resistant
  • Switching capacity: 1000 W (cos φ = 1), 500 VA (cos φ = 0.5), 300 W LED
  • Contact type: 1x micro switch, normally open contact (NOC)
  • Activation time: 4 s – 20 min
  • Activation threshold: 2 – 2000 lux

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Angle
140 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP44

Protection Certification

IP44

Suitable for indoor and outdoor areas. Provides protection against the intrusion of objects larger than 1 mm and withstands light rain or water splashes from any direction, making it ideal for balconies and terraces.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Recessed
Yes
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

LC-CLICK-140 motion sensor in white color, with a adjustable head and the ability to limit the detection area with covers. Installation is carried out via a snap-on system into a standard flush-mounted box.

  • Manufacturer: B.E.G.
  • Power supply: 110 – 240 V AC, 50 / 60 Hz
  • Dimensions: 103 x 78 x 80 mm
  • Nominal power: approx. 0.4 W
  • Horizontal detection range: 140°
  • Range: max. 12 m (sideways), max. 4 m (frontally)
  • Detection area at 2.5 m mounting height: 170 m²
  • Protection rating: IP44
  • Class: II
  • Operating temperature: -25 °C to +50 °C
  • Enclosure: polycarbonate, UV resistant
  • Switching capacity: 1000 W (cos φ = 1), 500 VA (cos φ = 0.5), 300 W LED
  • Contact type: 1x micro switch, normally open contact (NOC)
  • Activation time: 4 s – 20 min
  • Activation threshold: 2 – 2000 lux

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Angle
140 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP44

Protection Certification

IP44

Suitable for indoor and outdoor areas. Provides protection against the intrusion of objects larger than 1 mm and withstands light rain or water splashes from any direction, making it ideal for balconies and terraces.
Scope
12 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Recessed
Yes
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

53,90 €
14,00 €   shipping cost
