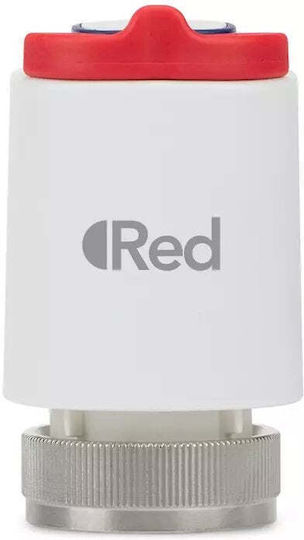

Salus Thermoelectric Actuator M30 X 1.5 230 V Rt30nc
Central Heating Parts & Accessories

Salus Thermoelectric Actuator M30 X 1.5 230 V Rt30nc

Thermoelectric actuator Salus RT30NC for valves and heating circuits, with M30x1.5 thread.

  • Operation: FIRST OPEN for easy installation.
  • Compact design: Suitable for limited spaces.
  • Manufacturer:...

Thermoelectric actuator Salus RT30NC for valves and heating circuits, with M30x1.5 thread.

  • Operation: FIRST OPEN for easy installation.
  • Compact design: Suitable for limited spaces.
  • Manufacturer: Salus
  • Model: R362202010
  • Power supply: 230V AC 50 Hz
  • Current (Imax): 200 mA / 200 ms
  • Operating consumption: 2 W
  • Operating type: NC (normally closed)
  • Thrust force:...
See Description & Specifications See Description & Specifications

Top specs

  • Power 2 W

Learn more about invoicing
Review the product
Product report

Description & Specifications

Thermoelectric actuator Salus RT30NC for valves and heating circuits, with M30x1.5 thread.

  • Operation: FIRST OPEN for easy installation.
  • Compact design: Suitable for limited spaces.
  • Manufacturer: Salus
  • Model: R362202010
  • Power supply: 230V AC 50 Hz
  • Current (Imax): 200 mA / 200 ms
  • Operating consumption: 2 W
  • Operating type: NC (normally closed)
  • Thrust force: 100 N (±10%)
  • Opening/closing time: approximately 2 min
  • Thread: M30x1.5
  • Dimensions: 40 x 70 x 40 mm
  • Power cable length: 89 cm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Thermostat
Compatibility
-
Construction Material [Pharmaceutical]
-
Smart / WiFi
No

Technical Parameters

Thread / Cross-section
-
Power
2 W
Maximum Pressure
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

28,90 €
14,00 €   shipping cost
