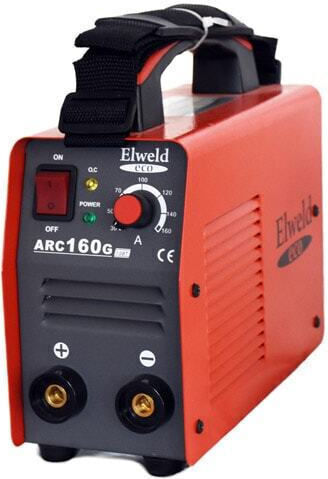

ELWELD Mini Inverter Welding Machine with Maximum Welding Current 160A and Duty Cycle 40%
Welding Machines

ELWELD Mini Inverter Welding Machine with Maximum Welding Current 160A and Duty Cycle 40%

Key features:

  • Inverter technology
  • Output current 30-160A
  • Compact size 5.5kg
  • Ideal for hard-to-reach spots

Perform precise welds in hard-to-reach spots with the ELWELD ECO160 MINI welder, featuring advanced Inverter technology.

See full description

Top specs

  • Welding Current

    160

    Suitable for use in medium-thickness metal constructions and pipelines.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
  • See all
140 00 €
Delivery Mon, 21 Sep - Wed, 23 Sep
20,00 €   shipping cost
Sent from Greece
From ellashart.g
Greece
1 piece
See Tools on the page of ellashart.g

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

  • Inverter Technology: Modern electronic system for reliable welding operation.
  • Output current 30-160A: Wide adjustment range to meet different requirements.
  • Compact 5.5kg size: Lightweight construction that makes transport and storage easier.
  • Ideal for hard-to-reach spots: Design suitable for fine work in confined spaces.

Inverter Technology & High Performance

Gain complete control over welding tasks with advanced Inverter technology. The single-phase ELWELD ECO160 MINI machine offers an output current range of 30-160A and a 40% duty cycle, ensuring a stable electric arc. With efficiency reaching 80%, you can complete every demanding project with precision while keeping consumption low.

Compact Design for Hard-to-Reach Areas

Work comfortably even in the most hard-to-reach areas thanks to the extremely compact dimensions of 290x132x203mm. The lightweight 5.5kg design makes this device the ideal miniature version of the ECO160 series for fine welding. With IP21 protection rating and F insulation, you can carry your tool anywhere safely and carry out your repairs without limitations.

Specifications

  • Type: Electronic welding machine (Inverter MMA)
  • Series: ELWELD ECO
  • Model: ECO160 MINI
  • Supply voltage: 1phase AC 220V ±15% (50/60 Hz)
  • Input current: 32.9 A
  • Output current: 30 - 160 A
  • No-load output voltage: 59 V
  • Output voltage: 26.4 V
  • Duty cycle: 40%
  • Efficiency: 80%
  • Power factor (cosØ): 0.73
  • No-load loss: 40 W
  • Insulation class: F
  • Protection degree: IP21
  • Dimensions: 290 x 132 x 203 mm
  • Weight: 5.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
40 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Weight
5500 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • Inverter Technology: Modern electronic system for reliable welding operation.
  • Output current 30-160A: Wide adjustment range to meet different requirements.
  • Compact 5.5kg size: Lightweight construction that makes transport and storage easier.
  • Ideal for hard-to-reach spots: Design suitable for fine work in confined spaces.

Inverter Technology & High Performance

Gain complete control over welding tasks with advanced Inverter technology. The single-phase ELWELD ECO160 MINI machine offers an output current range of 30-160A and a 40% duty cycle, ensuring a stable electric arc. With efficiency reaching 80%, you can complete every demanding project with precision while keeping consumption low.

Compact Design for Hard-to-Reach Areas

Work comfortably even in the most hard-to-reach areas thanks to the extremely compact dimensions of 290x132x203mm. The lightweight 5.5kg design makes this device the ideal miniature version of the ECO160 series for fine welding. With IP21 protection rating and F insulation, you can carry your tool anywhere safely and carry out your repairs without limitations.

Specifications

  • Type: Electronic welding machine (Inverter MMA)
  • Series: ELWELD ECO
  • Model: ECO160 MINI
  • Supply voltage: 1phase AC 220V ±15% (50/60 Hz)
  • Input current: 32.9 A
  • Output current: 30 - 160 A
  • No-load output voltage: 59 V
  • Output voltage: 26.4 V
  • Duty cycle: 40%
  • Efficiency: 80%
  • Power factor (cosØ): 0.73
  • No-load loss: 40 W
  • Insulation class: F
  • Protection degree: IP21
  • Dimensions: 290 x 132 x 203 mm
  • Weight: 5.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
40 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Weight
5500 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
