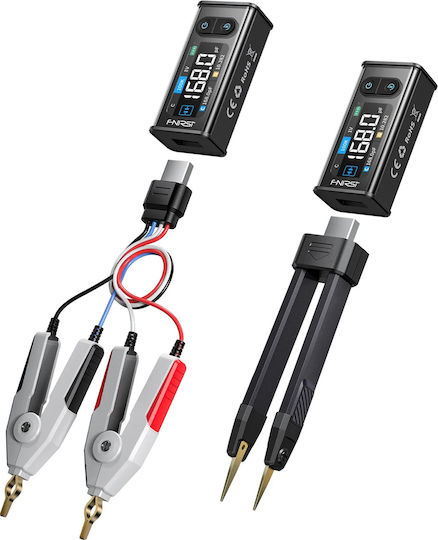

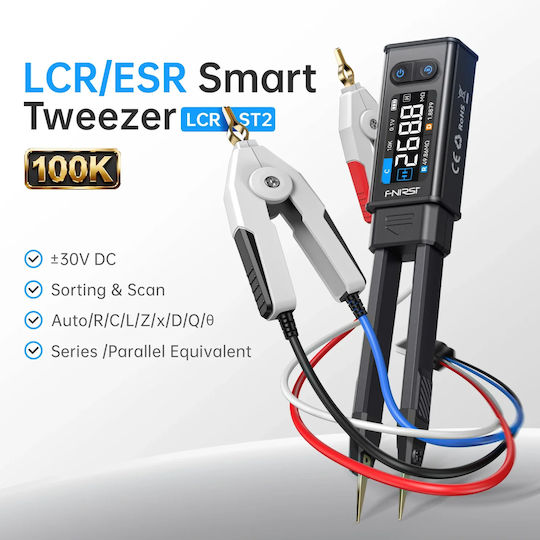

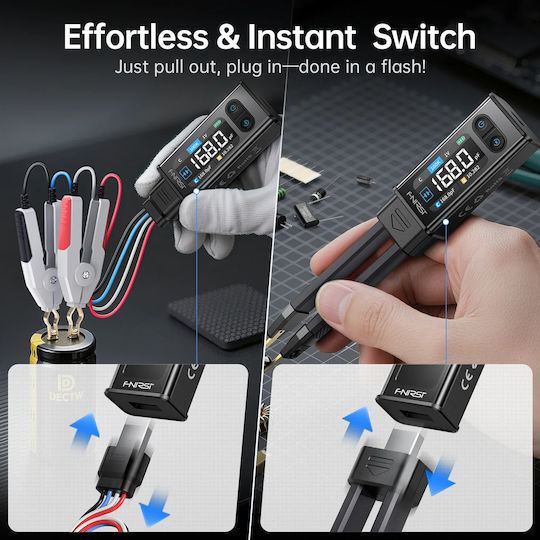

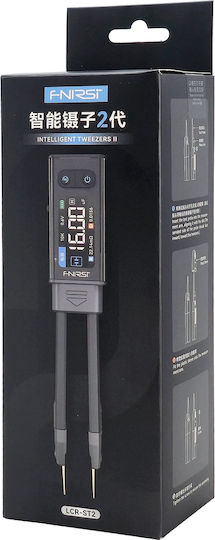

The FNIRSI digital LCR/ESR tester LCR-ST2 Plus is a compact and professional measuring tool, ideal for components of any size. It supports measurements via tweezers or Kelvin clip and provides accurate readings:

• Resistance: 10mΩ–10MΩ
• Capacitance: 1pF–22mF
• Inductance: 1μH–10H
• Diode: full analysis of electrical parameters
• Voltage: up to 30V

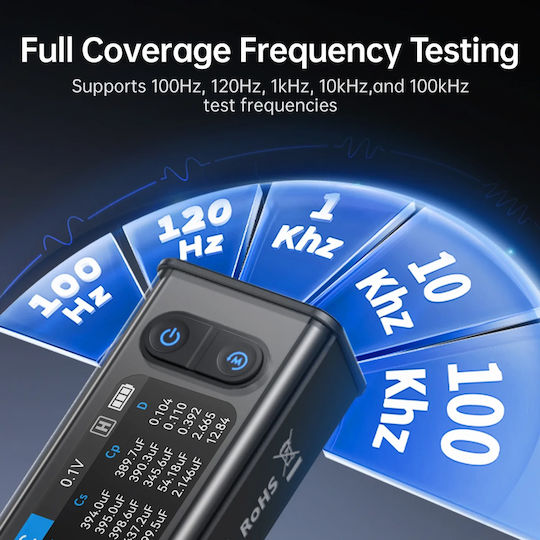

It features 5 selectable measurement frequencies: 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for precise measurements. The Full-Band Sweep function from 100Hz to 100kHz enables fast multi-frequency analysis.

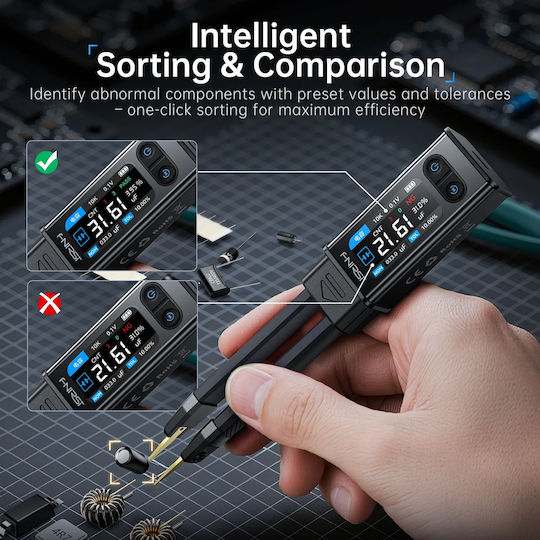

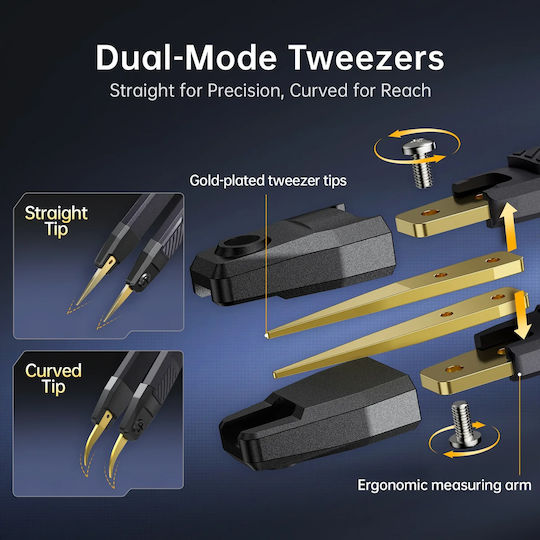

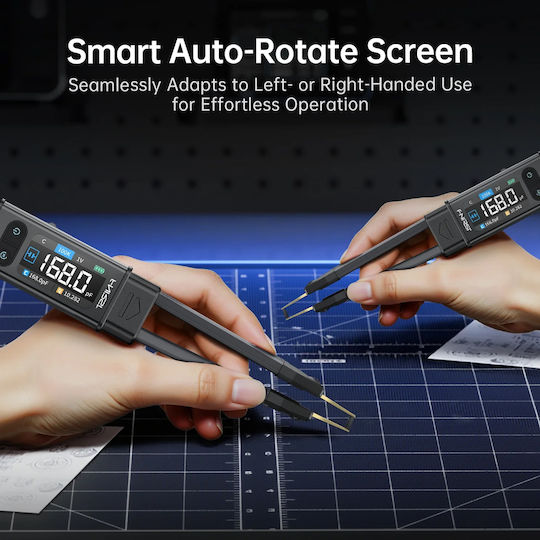

Smart component classification supports fast OK/NG testing, while the double tweezers design facilitates SMD component measurement. In addition, the 1.47" color HD display offers clear and easily readable data presentation.

The device is equipped with a rechargeable 300mAh battery providing approximately 3 hours of continuous operation and charges via USB-C port.

Technical specifications:

• Operating temperature: 0°C ~ 50°C
• Weight: ~60.8g
• Dimensions: 31x170.7x20.3mm

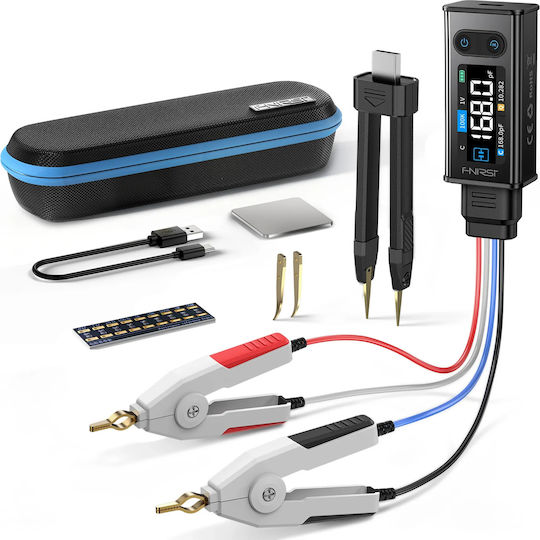

Package contents: LCR-ST2 Plus Tweezer, Kelvin Test Clip, Curved Tip, Shorting Plate, Data Cable, Storage Bag.
