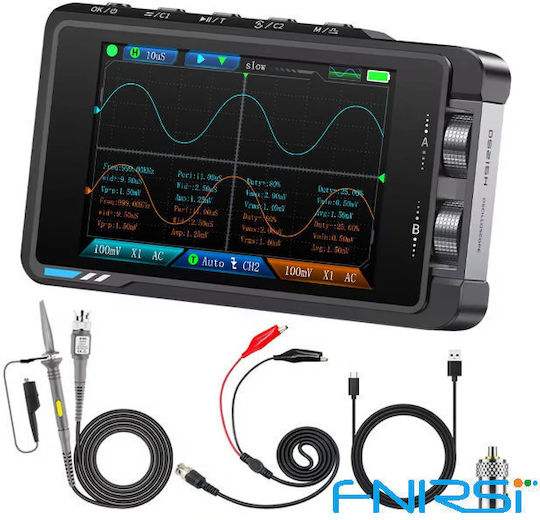

Fnirsi oscilloscope with a high-definition 3.5-inch IPS color display. The product features:

• Backlight
• Adjustable brightness
• Type C power supply (5V/1A)
• 1500mAh battery
• Product size ≈ 66x110x19.5 mm
• Product weight ≈ 138 g

Oscilloscope parameters:

• Channel: Dual
• Bandwidth: 50MHz
• Real-time sampling rate: 250MSa/s
• Storage capacity: 14 million
• Time base range: 20ns/div - 20s/div
• Vertical sensitivity: 10mV/div - 10V/div
• Vertical resolution: 8 bits
• Input resistance: 1MΩ
• Waveform display mode: Scroll

Measurement data: Cycle, Frequency, Vpp, Maximum, Minimum, Average, RMS, Amp, Duty cycle D, Pulse width.

Probe attenuation factor: 1x/10x

Input coupling: AC/DC

Trigger type: Rising edge/Falling edge

Maximum voltage: ±400V

Trigger level range: 8 grids (positive and negative)

Trigger mode: Auto / Normal / Single

Signal generator parameters: Output waveform, supports multiple waveform outputs.

Waveform frequency: 0-50KHz

Square wave duty cycle: 0-100%

Waveform amplitude: 0.1V-3.0V
