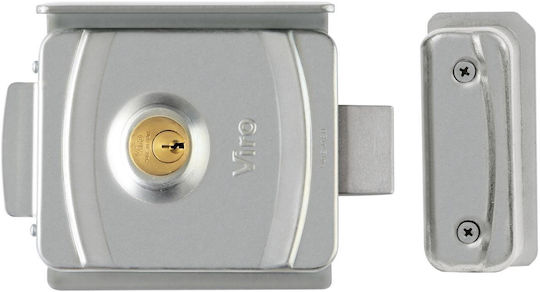

The V9083 electric lock with a rotating bolt is an advanced security solution for manual or automatic exterior doors and gates. It is fully compatible and interchangeable with the V90 and V83 models, offering flexibility in installations and system upgrades. Designed for demanding environments, it provides high resistance to extreme temperature variations and external conditions, while it can be installed both vertically and horizontally.

Functions:

• Service Function (standard): The lock opens with an electric pulse and resets only after the door is opened and closed again. Ideal for door closers, automation, and controlled access systems.
• Security Function (optional): By removing an internal component, the lock opens only when an electric pulse and mechanical pressure are applied simultaneously. Suitable for enhanced security, but not for door closers or incompatible automation.

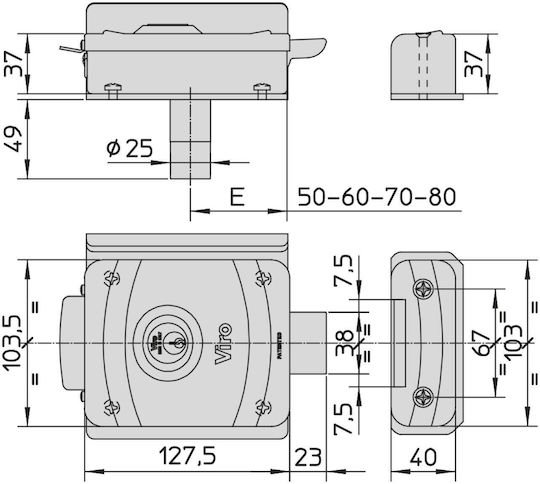

Technical Specifications:

• Adjustable backset: 50-60-70-80 (with Allen key)
• Version with profile cylinder: 70mm backset
• Operating voltage: 12V AC
• Body: One-piece galvanized steel
• Bolt: AISI 304 high-strength stainless steel
• Mechanism: Brass pins & anti-theft design
• Double coil for uniform load distribution

Cylinders & Keys:

• Version with round cylinder: solid brass (3 Viro keys)
• High-security internal mechanism with anti-theft features

Package Contents:

• Strike plate for horizontal installation
• Allen key for backset adjustment
• Mounting screws
• Roof-plate and striker plate

Ideal for:

• Gates & exterior doors
• Industrial facilities
• Automatic garage doors & access control systems
• Emergency exits
• High-security professional spaces
