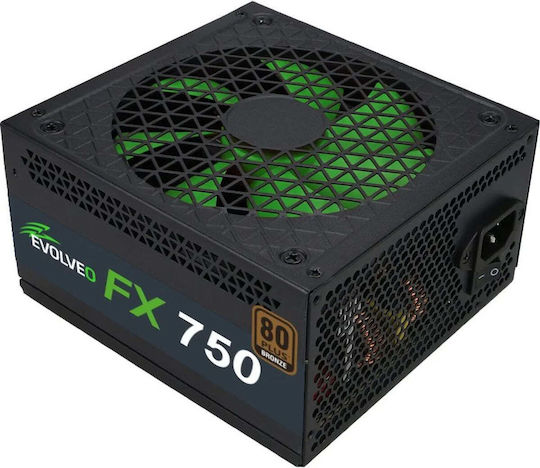

The Evolveo FX750 computer power supply delivers 750 W and complies with the ATX 2.2 standard. Its semi-modular cabling includes 2 PCIe 8-pin / 6+2-pin connectors and 6 SATA connectors, while its 80 Plus Bronze certification is accompanied by active PFC.
The 140 mm semi-passive fan remains inactive at loads below 20%. Protection systems cover short circuits, overvoltage, undervoltage, overload and overheating.
- Power: 750 W
- Type: ATX
- Standard: ATX 2.2
- Cabling: Semi-modular
- Certification: 80 Plus Bronze
- Power factor correction: Active (PFC)
- PCIe connectors: 2 (8-pin / 6+2-pin)
- SATA connectors: 6
- Fan: 140 mm, semi-passive
- Fan-off threshold: Below 20% load
- Short-circuit protection: Yes
- Overvoltage protection: Yes
- Undervoltage protection: Yes
- Overload protection: Yes
- Overheat protection: Yes
- Color: Black
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Semi Modular
- Certification
- 80 Plus Bronze
- Fan Dimension
- 140 mm
- Power Protection
- Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
