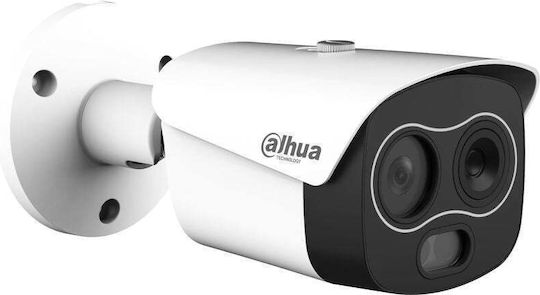

Dahua TPC-BF1241-TB3F4-DW-S8 IP Thermal Surveillance Camera Wi-Fi Full HD+ 4MP Waterproof
Surveillance Cameras

Dahua TPC-BF1241-TB3F4-DW-S8 IP Thermal Surveillance Camera Wi-Fi Full HD+ 4MP Waterproof

Key features:

  • Dual Technology Thermal & Visible
  • 4MP (Optical) & 256x192 (Thermal) Resolution
  • Smart Smoke Detection
  • Built-in Alarm

Hybrid camera that combines thermal imaging for detection in complete darkness with 4MP optical resolution for full detail recognition.

See full description

  • Login

    IP

    Digital cameras that connect to the wired or wireless network.

  • Video Resolution

    4MP

    High resolution with clear image at medium distances, suitable for monitoring stores, yards, or parking lots.

  • Infrared

    1

    They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.

  • Color Capture

    1

    Captures color images in low light conditions or at night.

  • Certification

    IP67

    Complete protection against dust or even immersion in water up to 1 meter for 30 minutes. Suitable for installation in areas with severe weather conditions, frequent rainfall, or coastal locations.

  • Number of Lenses

    The number of lenses that a camera may have in the same body for better visual coverage of the area.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

  • Hybrid Operation: The thermal channel detects targets through fog, smoke, or complete darkness, while the optical channel captures high-definition color images.
  • Artificial Intelligence (AI): Accurately classifies people and vehicles, reducing false alarms caused by animals or weather conditions.
  • Specialized Detection: Ideal for professional environments, as it detects events such as smoking or mobile phone use in restricted areas.
  • Active Deterrence: Once an intruder is detected, the camera activates the built-in white light and sound warning to drive them away.

Thermal and Optical Superiority

With the hybrid Mini Bullet, you will find that surveillance never stops. The vanadium oxide thermal sensor offers exceptional sensitivity (NETD < 40 mK), allowing heat detection even in the most challenging conditions. At the same time, the 4MP optical sensor provides crystal-clear images, ensuring that you always have the visual confirmation you need for every incident.

Advanced Perimeter Protection

You will appreciate the accuracy of the IVS algorithms (Tripwire & Intrusion). The camera does not simply "see" movement, but understands whether the target is a person or a vehicle. Additionally, the Cold & Hot Spot Trace feature allows you to monitor heat sources in real time, which is crucial for the timely prevention of fire or equipment malfunction in industrial environments.

Design and Connectivity

The camera is designed to withstand extreme temperatures (from -30°C to +60°C) and features IP67 certification for complete protection against water and dust. You will be impressed by the Fusion Mode capability, which blends thermal and optical images, offering you a unique view that highlights warm objects against the natural environment.

Technical Specifications:

  • Thermal Sensor: Vanadium oxide uncooled focal plane detector
  • Thermal Resolution: 256 (H) × 192 (V) (pixel pitch 12 μm)
  • Optical Sensor: 1/2.7'' CMOS, 4 Megapixel (2336 × 1752)
  • Thermal Lens: Options 3.5mm / 7mm / 10mm
  • Optical Lens: Options 4mm / 8mm / 12mm
  • IR Range: Up to 30 meters
  • Intelligence: Tripwire, Intrusion, Human/Vehicle Classification
  • Special Detections: Smoking, Mobile Phone Use, Heat Detection
  • Video Compression: H.265, H.264, H.264H, MJPEG
  • Audio: 1 Input, 1 Output (built-in speaker)
  • Alarm: 2 Inputs, 2 Outputs (built-in white light)
  • Storage: Micro SD slot (up to 256 GB)
  • Protection: IP67
  • Power Supply: 12 VDC or PoE (802.3af)
  • Dimensions: 205.5 mm × 90.4 mm × 90.1 mm

What’s included in the package:

  • Hybrid Thermal Mini Bullet Camera
  • Installation kit (screws and wall plugs)
  • Waterproof cover for network connection
  • Drilling template for precise installation
  • Quick start guide

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Use
IP

Use

IP

Digital cameras that connect to the wired or wireless network.
Type
Bullet

Type

Bullet
Clear cameras with a wide range of capture, suitable for large indoor and outdoor spaces.
Placement
Outdoor

Placement

Outdoor

They have waterproof protection, which makes them capable of operating in an outdoor environment without being affected by weather conditions.
Video Resolution
4MP

Video Resolution

4MP
High resolution with clear image at medium distances, suitable for monitoring stores, yards, or parking lots.
Protection Certification
IP67

Protection Certification

IP67

Complete protection against dust or even immersion in water up to 1 meter for 30 minutes. Suitable for installation in areas with severe weather conditions, frequent rainfall, or coastal locations.
Power Source
12V, PoE

Power Source

PoE

Ability to power and transfer data through an Ethernet cable.
Colour
White

Night Vision

Infrared
Yes

Infrared


They feature infrared LED, allowing them to capture black and white images in low light conditions or in the dark.
Color Capture
Yes

Color Capture


Captures color images in low light conditions or at night.

Operations

PTZ
No

PTZ

The PTZ (pan-tilt-zoom) function allows you to zoom in and even rotate the camera vertically or horizontally remotely through the application.
Microphone
No

Microphone

The camera has a built-in microphone for recording sound.
Speaker
No
Mobile App
Yes

Mobile App

The camera can be connected to a mobile smartphone through an application. The application allows the user to manage the camera wherever they are.
Wide Angled Lens
No

Wide Angled Lens

The wide-angled lens has a larger horizontal viewing angle (110 degrees and above) and can therefore capture a wider range of the image.
Wide Dynamic Range
No
Thermal
Yes

Thermal

Thermal technology allows the camera to create images based on the temperature differences between objects and their surroundings. While a regular camera is "blinded" by complete darkness, fog, or heavy rain, a thermal camera detects the infrared energy emitted by a person, an animal, or a vehicle.
Motion Detection
No
Rotating
No

Rotating

With remote rotation capability that allows monitoring of more areas within the installation space.
Siren
Yes

Additional Features

Number of Cameras
1

Number of Cameras

The number of lenses that a camera may have in the same body for better visual coverage of the area.
Memory Card Slot
Yes

Memory Card Slot

The camera provides the ability to insert a memory card for immediate image capture.
Maximum Card Capacity
256GB
Solar Panel
No

Solar Panel

It features a panel that allows for the charging of its battery through solar energy.

Zoom Function

Digital Zoom
No
Optical Zoom
No

Smart Attributes

Wi-Fi
Yes

Wi-Fi

The camera connects via wi-fi network and data transmission and reception is wireless without the need for cables, except for power supply.
4G
No

4G

The camera connects via a 4G mobile network, and data transmission and reception are done wirelessly without the need for cables, except for the power supply cable.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • Hybrid Operation: The thermal channel detects targets through fog, smoke, or complete darkness, while the optical channel captures high-definition color images.
  • Artificial Intelligence (AI): Accurately classifies people and vehicles, reducing false alarms caused by animals or weather conditions.
  • Specialized Detection: Ideal for professional environments, as it detects events such as smoking or mobile phone use in restricted areas.
  • Active Deterrence: Once an intruder is detected, the camera activates the built-in white light and sound warning to drive them away.

Thermal and Optical Superiority

With the hybrid Mini Bullet, you will find that surveillance never stops. The vanadium oxide thermal sensor offers exceptional sensitivity (NETD < 40 mK), allowing heat detection even in the most challenging conditions. At the same time, the 4MP optical sensor provides crystal-clear images, ensuring that you always have the visual confirmation you need for every incident.

Advanced Perimeter Protection

You will appreciate the accuracy of the IVS algorithms (Tripwire & Intrusion). The camera does not simply "see" movement, but understands whether the target is a person or a vehicle. Additionally, the Cold & Hot Spot Trace feature allows you to monitor heat sources in real time, which is crucial for the timely prevention of fire or equipment malfunction in industrial environments.

Design and Connectivity

The camera is designed to withstand extreme temperatures (from -30°C to +60°C) and features IP67 certification for complete protection against water and dust. You will be impressed by the Fusion Mode capability, which blends thermal and optical images, offering you a unique view that highlights warm objects against the natural environment.

Technical Specifications:

  • Thermal Sensor: Vanadium oxide uncooled focal plane detector
  • Thermal Resolution: 256 (H) × 192 (V) (pixel pitch 12 μm)
  • Optical Sensor: 1/2.7'' CMOS, 4 Megapixel (2336 × 1752)
  • Thermal Lens: Options 3.5mm / 7mm / 10mm
  • Optical Lens: Options 4mm / 8mm / 12mm
  • IR Range: Up to 30 meters
  • Intelligence: Tripwire, Intrusion, Human/Vehicle Classification
  • Special Detections: Smoking, Mobile Phone Use, Heat Detection
  • Video Compression: H.265, H.264, H.264H, MJPEG
  • Audio: 1 Input, 1 Output (built-in speaker)
  • Alarm: 2 Inputs, 2 Outputs (built-in white light)
  • Storage: Micro SD slot (up to 256 GB)
  • Protection: IP67
  • Power Supply: 12 VDC or PoE (802.3af)
  • Dimensions: 205.5 mm × 90.4 mm × 90.1 mm

What’s included in the package:

  • Hybrid Thermal Mini Bullet Camera
  • Installation kit (screws and wall plugs)
  • Waterproof cover for network connection
  • Drilling template for precise installation
  • Quick start guide
