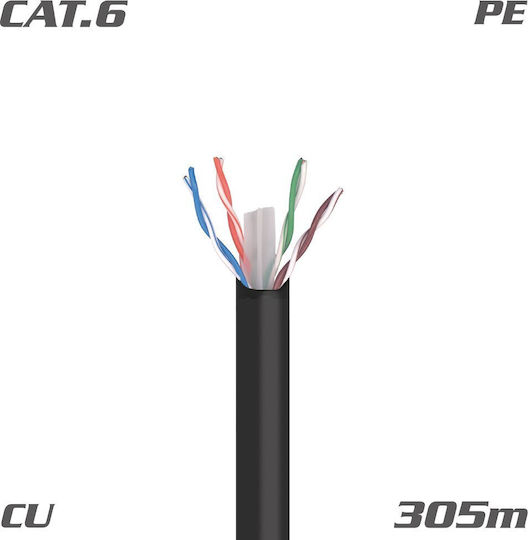

The Televes 212201 U/UTP DK6000 Cat.6 Fca Cu PE Black 305m data cable is a U/UTP Cat 6 Fca PE 24AWG Category-6 cable with Fca Euroclass, featuring a copper conductor and PE sheath for outdoor applications. Technically compatible with PoE/PoE+/PoE++ (Power over Ethernet) technology, it allows powering network devices. It has an outer PE (polyethylene) jacket and a nominal velocity of 72%.

It is certified according to current standards, as defined in the available compliance and performance declarations. This is a Cat 6 data cable. It also complies with the Gigabit Ethernet standard and is compatible with lower category standards (Cat 5/5e and Cat 3). It supports transmission frequencies up to 250 MHz (per pair) and performance of 1 Gbps, while it includes features and specifications to avoid crosstalk and noise. It can be used in systems compatible with 10BASE-T, 100BASE-T, and 1000BASE-T (Gigabit Ethernet).

Technical Specifications:

• Category: Cat. 6
• Type: U/UTP Cat.6 Fca CU PE 24AWG
• Compliant with TIA/EIA-568B.2-1 standard
• Conductor insulation polyethylene PE, diameter 0.95 mm
• EuroClass: Fca
• Conductor: material: Solid copper, diameter (mm): 0.55 ± 0.02, type: AWG 24
• Insulation material: Polyethylene, diameter (mm): 0.95
• Filling: "Crucifix" type
• Outer sheath: material: PE (Outdoor use), diameter (mm): 6.2 ± 0.2, thickness (mm): 0.55 ± 0.05
• Nominal composite resistance Ohm: 100 ± 15
• Max. Conductor resistance Ω/100m < 9.38
• Data rate up to 1Gbps
• Frequency range up to 250 MHz
• Includes a thread for easier cable stripping
• Nominal velocity %: 72
• Operating voltage V: 300
• Environmental conditions Operating temperature °C -40 ... 80
• Packaging: 305 meters spool (roll box), with cable consumption indication
• Packaging quantity: 1 piece / 305m

Frequency (MHz) / Attenuation (dB/1m):

• 1 / 0.02
• 4 / 0.038
• 8 / 0.053
• 10 / 0.060
• 16 / 0.076
• 20 / 0.085
• 25 / 0.095
• 31.25 / 0.107
• 62.5 / 0.154
• 100 / 0.198
• 200 / 0.290
• 250 / 0.328
