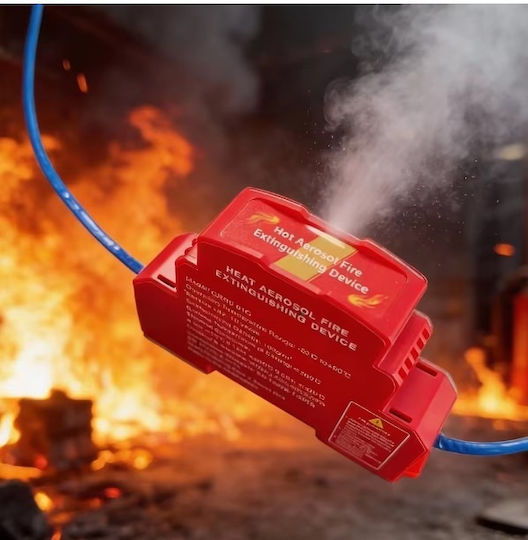

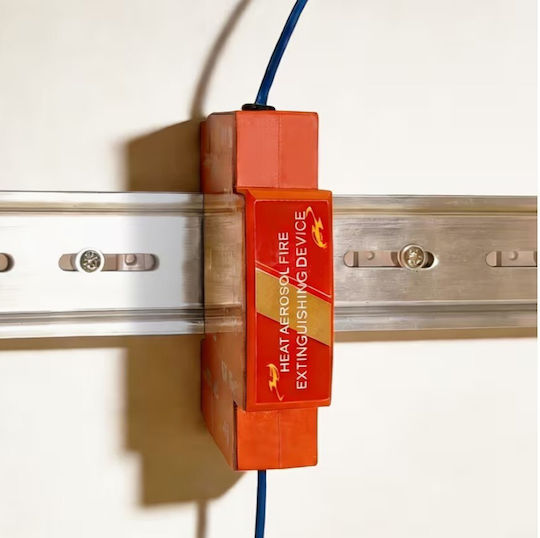

The automatic aerosol fire extinguishing device DIN Rail is specially designed for the protection of electrical panels, distribution cabinets, and small-volume spaces up to 0.4m³. It activates automatically in the event of ignition and releases fire-extinguishing aerosol within a few seconds, suppressing the fire without causing pollution or damage to the equipment. The device is easily installed on a DIN rail inside an electrical panel or cabinet and operates without wiring, without maintenance, and without external power supply.

Technical Specifications:

• Mounting type: DIN Rail
• Technology: Fire Extinguishing Aerosol (Aerosol Safety Device)
• Discharge time: ≤ 6 seconds
• Protected area: up to 0.4 m³
• Operating temperature: -50°C to +90°C
• Use: Electrical panels, distribution cabinets, engine compartment, distribution box
• Non-polluting technology
• No maintenance required

Applications:

• Electrical distribution panels
• Server / data cabinet
• Industrial control panels
• Small-volume engine rooms
• Automation panels
