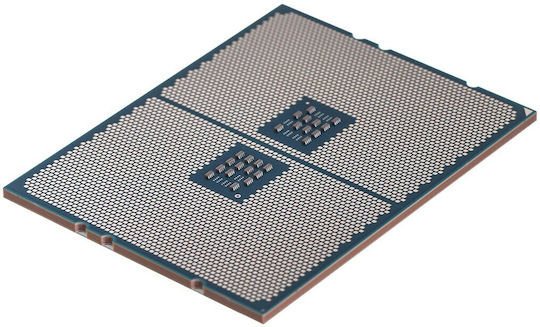

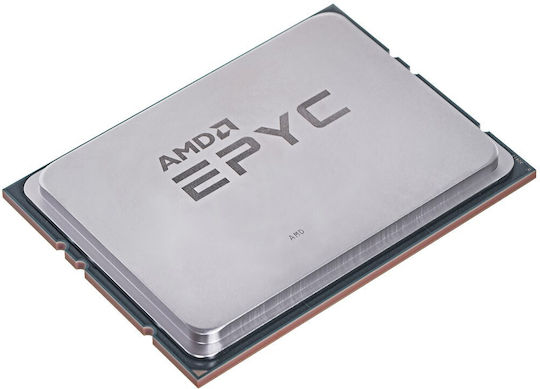

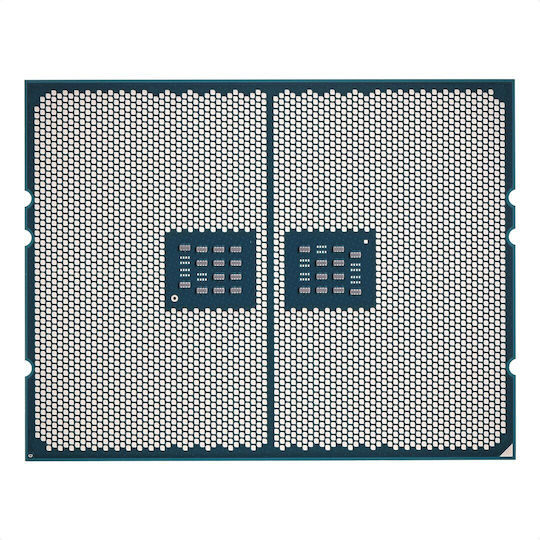

AMD Epyc 9535 2.4GHz Processor 64 Core for Socket SP5 Tray
CPU Processors

AMD Epyc 9535 2.4GHz Processor 64 Core for Socket SP5 Tray

Key features:

  • Number of cores: 64
  • Total TDP: 300 W
  • Cache memory: 256 MB (L3)
  • Base frequency: 2.4 GHz
  • Processor socket: Socket SP5
See full description

  • CPU Speed

    The speed at which the processor operates in everyday use.

    During the execution of demanding applications (e.g. games), the frequency may automatically increase up to the Maximum Processor Frequency.

  • Cores

    The natural individual processing units that the processor has. The more cores a processor has, the more efficient it is in running multiple applications simultaneously. For simple use, 4 cores are sufficient, while for gaming and video processing, at least 6 are recommended.

  • Socket

    The processor socket type.

    The motherboard we choose should have the same socket in order for the processor to "fit in".

  • Maximum CPU Speed

    The maximum processor frequency is the frequency that the processor can reach when executing demanding applications that use one core. Generally, when running demanding applications (e.g. games), the frequency can automatically increase up to the Maximum Processor Frequency depending on the number of cores in use. (the fewer cores are active, the closer they can operate to the maximum frequency)

  • Cache Memory

    Cache is a very fast memory that acts as an intermediary between the processor and RAM. It stores data that is frequently useful to the processor for faster access.
  • See all
Review the product
Product report

Description

Description

Processor Manufacturer: AMD

Processor Model: 9535

Total TDP: 300 W

Reduced TDP: 240 W

Boost Frequency: 4.3 GHz

Base Frequency: 2.4 GHz

  • Number of Cores: 64
  • Threads: 128
  • Cache Memory: 256 MB (L3)

Type of Cooler: No

Processor Socket: Socket SP5

Integrated Graphics: No

Discrete Graphics Card Model: Not available

Maximum Number of PCI Express Lanes: 128

PCI Express Socket Version: 5.0

Maximum Memory Bandwidth: 576 GB/s

Supported Memory Types: DDR5-SDRAM

Memory Channels: Twelve-channel

AMD EPYC™ 9535: Top Performance for Data Centers & Enterprise Workloads

The AMD EPYC™ 9535 processor, a member of the advanced EPYC 9005 series, represents the cutting edge for modern server infrastructures. Designed to deliver unmatched virtual machine density (VM Density) and exceptional performance in demanding applications, the 9535 combines 64 high-performance cores with the latest connectivity technology.

Main Performance Features

  • Cores & Threads: Features 64 cores and 128 threads, offering immense power for parallel processing.
  • Clock Speeds: Base frequency at 2.4 GHz with Max Boost capability up to 4.3 GHz, ensuring high speed even for the most demanding single-core tasks.
  • L3 Cache Memory: Impressive capacity of 256 MB, minimizing latency and accelerating data access.
  • Power Management: With Default TDP 300W and configurable (cTDP) between 240W-300W, it allows optimization of power consumption according to system needs.

Next-Generation Connectivity & Memory

The EPYC™ 9535 is built for the future of computing:

  • DDR5 Memory: Supports 12 channels of DDR5 memory with speeds up to 6400 MT/s, delivering an impressive bandwidth of 614 GB/s per socket.

  • PCI Express® 5.0: With 128 PCIe 5.0 lanes, it offers ultra-fast communication with GPUs, NVMe storage devices, and next-generation network cards.

  • Socket SP5: Compatible with single (1P) or dual (2P) socket configurations for maximum scalability.


Ideal for Specialized Workloads (Workload Affinity)

The processor is optimized for:

  • Data Analytics & Data Management: High-capacity databases (RDBMS).

  • Virtualization: Top performance in VDI environments and high-density Virtual Machines.

  • Enterprise Applications: Ideal for CRM, SCM, and ERM systems.

  • CAE & Software Development: Ultra-fast compiling and engineering simulations.

Security & Technology

Integrates leading AMD Infinity Guard and AMD Infinity Architecture technologies, offering multi-layered data protection and secure isolation of elements in the cloud or shared environments.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Year of Release
2024
Family
Epyc

Family

Epyc

Intel processor family designed for specialized use in servers and data processing centers.
Microarchitecture
Zen 5

Microarchitecture

The code name of the generation and internal organization of the processor. A common indicative element is the nanometers (nm) of the microarchitecture; the smaller, the better. The latest and most recent generation of Intel, named Arrow Lake, includes the “Core Ultra” models without the "i" prefix. The latest and most recent generation of AMD is Zen 5.
Socket
SP5

Socket

The processor socket type.

The motherboard we choose should have the same socket in order for the processor to "fit in".
Packaging
Tray

Packaging

Tray

"They are not accompanied by a cooler and a fan. They are intended for those who wish to purchase a cooling system independently."
Compatible Chipset
-
Type
Server

Performance

Cores
64

Cores

The natural individual processing units that the processor has. The more cores a processor has, the more efficient it is in running multiple applications simultaneously. For simple use, 4 cores are sufficient, while for gaming and video processing, at least 6 are recommended.
Threads
128

Threads

Threads are virtual versions of processor cores. They allow the processor to serve multiple tasks in parallel.
Processor Frequency (Base Frequency)
2.4 GHz

Processor Frequency (Base Frequency)

The speed at which the processor operates in everyday use.

During the execution of demanding applications (e.g. games), the frequency may automatically increase up to the Maximum Processor Frequency.
Max Processor Frequency
4.3 GHz

Max Processor Frequency

The maximum processor frequency is the frequency that the processor can reach when executing demanding applications that use one core. Generally, when running demanding applications (e.g. games), the frequency can automatically increase up to the Maximum Processor Frequency depending on the number of cores in use. (the fewer cores are active, the closer they can operate to the maximum frequency)
Cache memory
256 MB

Cache memory

Cache is a very fast memory that acts as an intermediary between the processor and RAM. It stores data that is frequently useful to the processor for faster access.
Unlocked
No

Unlocked

Ability to change the processor clock settings to achieve higher operating frequency (overclocking).
Thermal Design Power (TDP)
300 W

Thermal Design Power (TDP)

The TDP shows how much heat the processor generates during typical use.

The cooler used should be capable of handling this amount of heat.

Features & Functions

Includes Heatsink
No

Includes Heatsink


The processor requires cooling in order to operate. If the processor does not come with a heatsink, you will need to purchase a suitable CPU heatsink or a separate water cooling system.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
