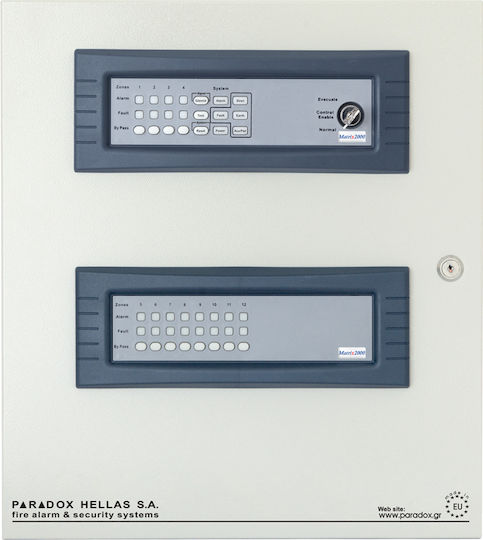

Fire Detection Systems

• 12 detector or fire alarm call point connection zones monitored with EOL resistors.
• General alarm output monitored with EOL resistor, 24VDC voltage, and 1A current.
• 8 monitored relay outputs (one output per zone) with EOL resistors.
• Cross zoning capability with adjustable command delay time.
• 2 extinguishing areas with 2 zones per area (only on the main board of the panel).
• General trouble output (free relay contacts NC, COM, NO).
• Detection and indication of fault in case of grounding any cable of the installation (earth fault).
• Three-position key switch for selecting access levels 1 & 2 and room evacuation command.
• Illuminated buttons upon activation for Reset, Silence, Test, and isolation of panel zones.
• Display of all panel statuses via 30 LEDs.
• Audible user notification for alarm and fault conditions (Buzzer).
• Zone isolation capability from the keypad on the front panel of the system.
