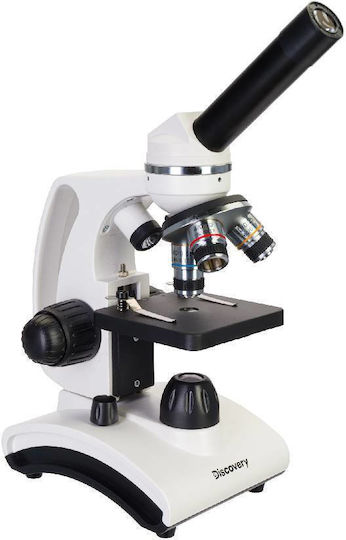

The Discovery optical products series, manufactured by Levenhuk and endorsed by Discovery, is presented. The Discovery Femto Polar microscope is a classic monocular microscope that allows exploration of the world of microorganisms with magnification from 40x to 400x. It can reveal the cellular structure of plants and insects, life in a drop of water, protozoa, and much more. The microscope is an excellent assistant in the classroom for conducting simple biological experiments. An educational book about the world of microorganisms is included, making the experiments even more interesting and diverse.

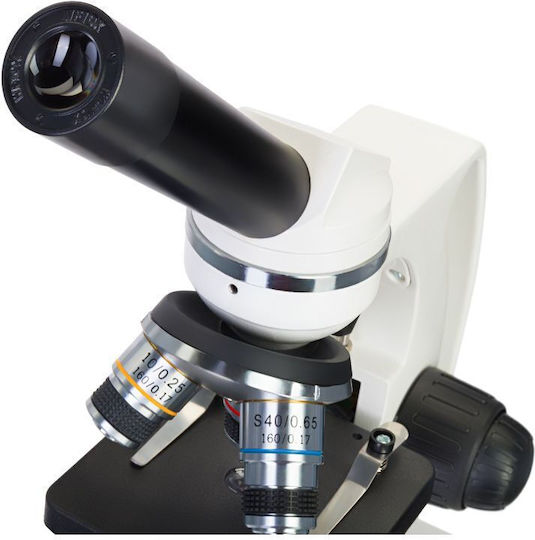

The achromatic optics provide clear and detailed imaging of the samples. The device's rotating head has three objective lenses: 4x, 10x, and 40x with spring mechanism. The wide-angle mirror offers clear observation at 10x magnification. The monocular head is ergonomically inclined at 45°, making it more comfortable for prolonged observations. Additionally, the head rotates 360 degrees horizontally, which is excellent for group experiments. The microscope does not need to be moved to share the image with a partner, as the head can be rotated accordingly.
It is equipped with separate adjustment knobs for coarse and fine focus, allowing for smoother focus adjustments. The lighting system includes upper and lower LED illumination with brightness control. The lower light passes through a diaphragm disc, which also helps to control brightness. The device can operate with batteries (included) or with power supply (AC adapter included). The platform is equipped with clips for securely holding slides.
The book "The Invisible World" is a fascinating addition to the microscope. It reveals the world of microorganisms and explains scientific experiments. Written in easy language and featuring vibrant illustrations, it presents historical facts about microscopy and microorganisms, as well as experiments that can be conducted at home using the Discovery Femto Polar microscope.
Main Features:- Biological, magnification from 40x to 400x
- Monocular rotating head, inclined at 45°
- Achromatic lenses, wide-angle mirror, precise focus
- Brightness adjustment, AC power or battery
- Platform with clips, metal body
- Educational illustrated book included
- One microscope
- One WF10x mirror
- Three achromatic objective lenses 4x, 10x, 40x
- Three AA batteries
- One AC adapter with power cord
- One dust cover
- Educational book "The Invisible World"
- Package size (L x W x H), cm: 34.3 x 22 x 16.7
- Type: biological, light/optical
- Head: monocular
- Optical material: optical glass
- Head rotation: 360°
- Head tilt angle: 45°
- Magnification, x: 40—400
- Diameter of the tube mirror, mm: 23.2
- Mirrors: WF10x
- Objectives: achromatic 4x, 10x, 40x
- Rotating base for 3 objectives
- Platform size, mm: 90 x 90
- Platform movement range, mm: 0 to 10
- Platform features: with clips
- Numerical Aperture: 0.65
- Diaphragm: diaphragm disc (6 openings)
- Focus: coarse, 0.5 mm and fine, 0.002 mm
- Body: metal
- Illumination: LED
- Power supply: universal power unit (110–240 V)
- Power: 3 AA batteries (included)
- Type of light source: lower: 0.2 W, upper: 0.1 W
- Operating temperature range, °C: 5—40
- Additional feature: LED brightness controller
- User level: beginner
- Assembly difficulty level: extremely easy
- Application: school/educational
- Lighting position: combined
- Observation method: bright field
- Product Number
- 79181
Specifications
- Type
- Biological, Polarizing
- Educational
- No
- Magnification
- Yes
- Head
- Monocular
- Magnification (x)
- -
- Lenses
- 4x, 10x, 40x
- Lighting
- LED
- USB
- No
External Dimensions
- Width
- 24.5 cm
- Length
- 24.5 cm
