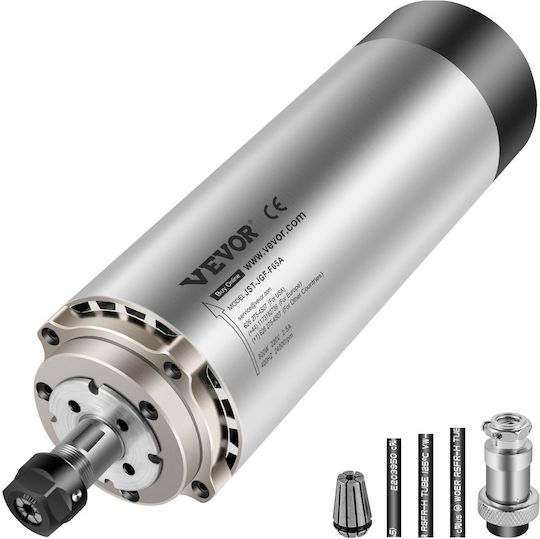

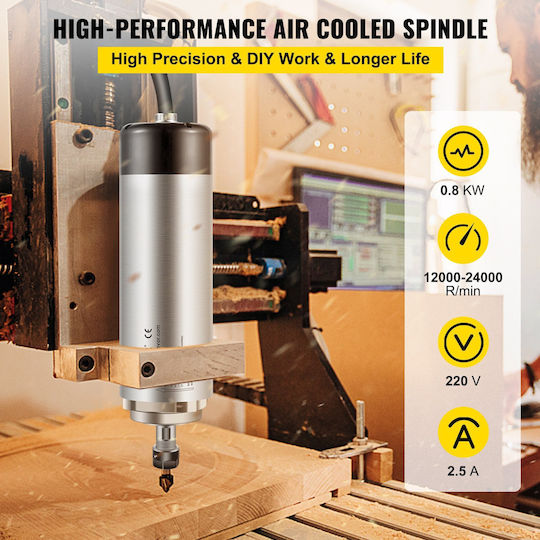

Technical Parameters:

• Specification: φ2.6 x 8 in (Diameter: 6.5 cm x Length: 20.3 cm)
• Power: 0.8KW
• Voltage: 220V
• Current: 2.5A
• Collet Size: ER11
• Bearings: 4 bearings
• Frequency: 200-400 Hz
• Speed: 12000-24000 R/min
• Leakage: less than 0.002 mm

Primarily used for engraving machines or in combination with a frequency converter.

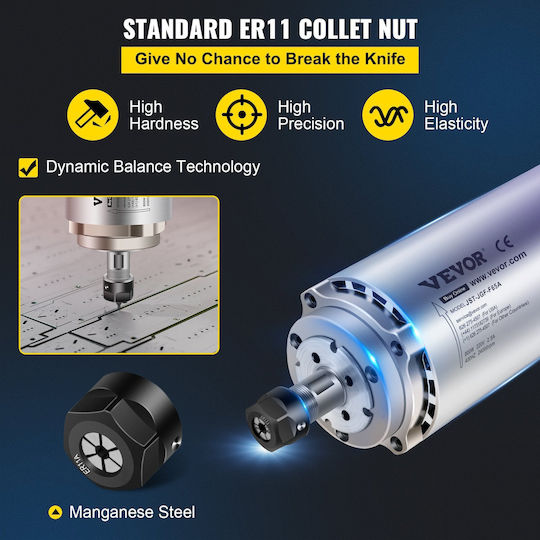

Standard ER11 Collet: The spindle collet of the CNC router is made of manganese steel. Leakage is less than 0.002 mm with high precision. Increases process stability.

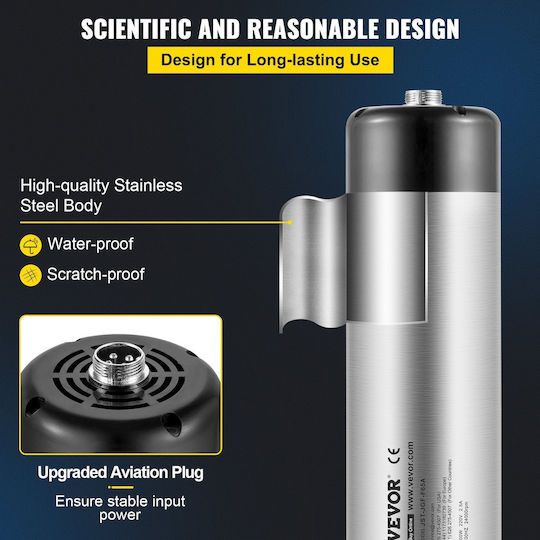

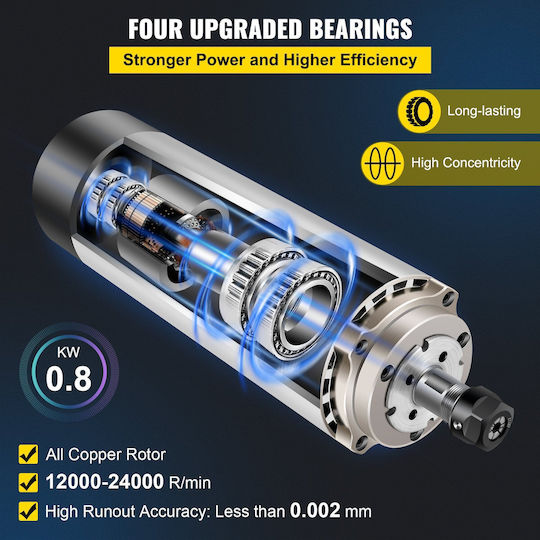

High-Quality Bearings: The air spindle motor uses imported high-precision bearings for increased durability and rust resistance.

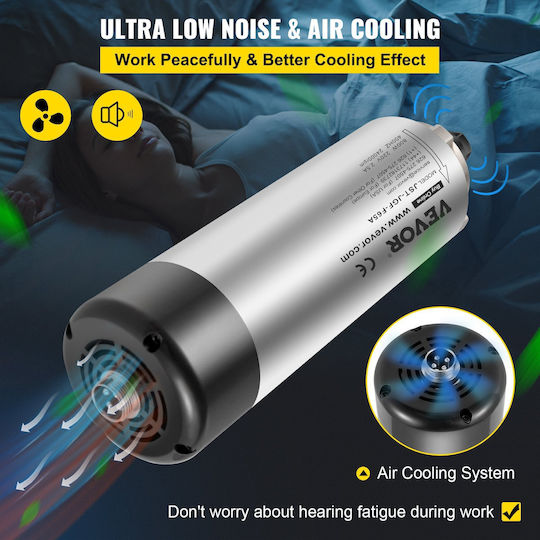

Low Noise and Heat Dissipation: The scientifically designed air cooling system ensures smooth operation and better heat dissipation.

Wide Application: The CNC spindle motor kit is suitable for engraving machines or frequency converters, using air circulation for cooling.

Specifications: 65 x 180 mm (Diameter), Power: 0.8 KW, Frequency: 400 Hz, Speed: 0-24000 R/min, Leakage: less than 0.005 mm, ER11 collet chuck (3.175 mm, 4 mm, 6 mm), Gross Weight: 2.7 KG (5.95 lbs), Product size (approximate): 10" L x 3" W, Voltage: 220V~250V.
