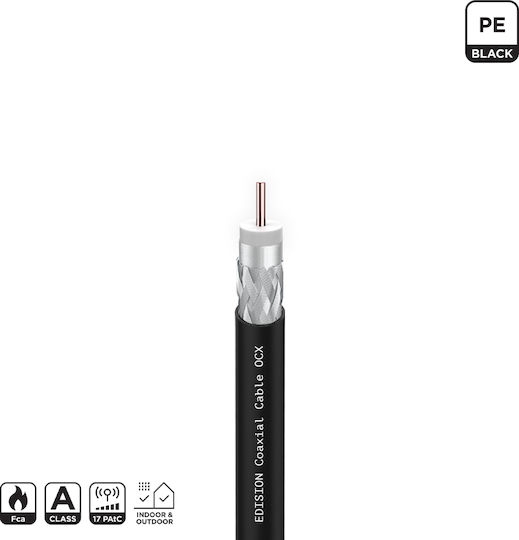

Coaxial cable RG6, suitable for both outdoor and indoor use. Ideal for distributing signal for Terrestrial Digital and Satellite TV, as well as for CCTV camera signal.

Features a conductor made of 100% copper (CU) with enhanced mechanical properties and an outer PE sheath, with double shielding of Class A. Offers excellent conductivity and low signal attenuation across the entire frequency range.

Technical specifications:

• Type: Coaxial Cable RG-6, double shielded, OCX-100
• Suitable for Terrestrial and Satellite reception, as well as CCTV installations
• Shielding Class: Class A
• CPR Class: Fca
• Central Conductor: Diameter 1.13 ± 0.05 mm, Material: Copper (CU)
• Inner Insulation: Diameter 4.7 mm, Material: Foamed Polyethylene (FPE)
• Outer Insulation: Aluminum (AL) with 100% coverage
• Braid: Aluminum Mesh (AL) 16x8x0.12 mm with 77% coverage
• Outer Sheath: Diameter 6.6mm ± 0.10 mm, Material: Black PE
• Impedance: 75 Ohm
• Minimum Bending Radius: 35mm
• Shielding: >85 dB (typ.130dB)

Return Loss:

• 5-862 MHz: >22 dB
• 862-2150 MHz: >20 dB

General:

• Operating ambient temperature: -40°C … +80°C
• Application: Outdoor and Indoor use
• Length: 100m (meter-marked)
• Weight: 3.83 kg
• Color: Black
