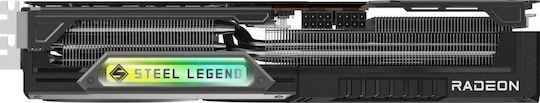

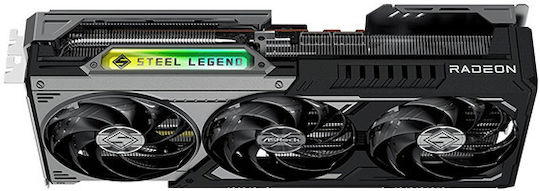

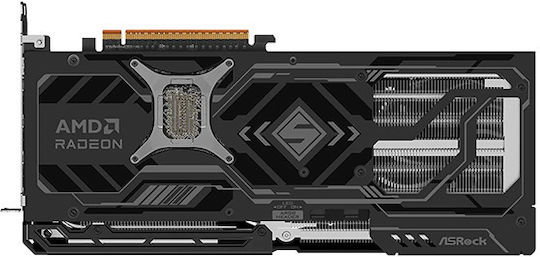

ASRock Radeon RX 9070 XT 16GB GDDR6 Steel Legend Dark Graphics Card Code: 90-GA5VZZ-00UANF

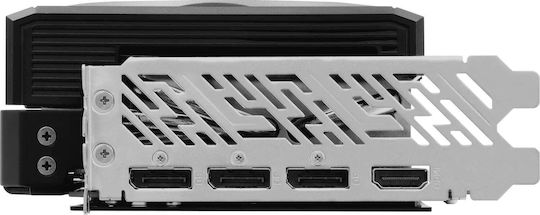

ASROCK AMD Radeon RX 9070 XT Steel Legend Dark graphics card, 16 GB GDDR6, 256 bit, 3x DisplayPort 2.1a, 1x HDMI 2.1b, 298 x 131 x 58 mm, 2.9 slot, recommended power supply 2x0, power supply 2x0 90-GA5VZZ-00UANF

See full description
  • Connectivity HDMI, DisplayPort
  • See all

Description

Description

With the built-in ARGB LEDs, you can create your own unique colorful lighting effects that can also be turned on and off. It can also be synchronized with ASRock motherboards that support Polychrome SYNC.

Ray Tracing

The powerful ray tracing accelerators in the AMD Radeon™ RX 9000 Series graphics deliver stunning levels of detail in lighting, shadows, and reflections in supported games.

AMD FSR 4

The advanced frame generation and upscaling technologies powered by cutting-edge ML come to AMD FidelityFX™ Super Resolution 4. Enjoy new levels of immersion while boosting frame rates in supported titles.

HIGH SPEED FLOW

Unlock new multimedia experiences with full AV1 encoding/decoding support, designed to deliver incredible image quality at lower bit rates and smaller file sizes.

CLEAR AND VALUABLE COMMUNICATION

AMD Noise Suppression helps reduce ambient noise from your environment using AI, providing you with greater clarity and focus whether you're concentrating on an important meeting or playing a competitive game.

Works best with AMD Ryzen

Build the ultimate computer by combining AMD Ryzen™ 9000 Series processors and AMD Radeon™ RX 9000 Series graphics.

Game Ready

With reliable drivers for an exceptional gaming experience.

Advanced Imagination

Enjoy the next generation of desktop AI powered by AMD with AMD FSR 4 and new features in AMD software

Manufacturer

See full description

Specifications

Specifications

Product Number
90-GA5VZZ-00UANF

Main Specifications

Processor Manufacturer
AMD
Chipset Model
Radeon RX 9070 XT
Interface
PCI Express x16 5.0
Maximum Resolution
7680x4320 pixels
Parallel Processing Technology
Not Supported
Type
High Performance
Cuda Cores
-
Device Group
Gaming
Colour
Black

Special Features

RGB Lighting
Yes
OverClock (OC)
No
Air-cooled
Yes
Low Profile
No
Passive Cooling
No
Water-cooled
No
External Graphics Card (eGPU)
No
LHR
No

Memory

Memory Capacity
16 GB
Memory type
GDDR6
Memory Speed
20 Gbps
Memory bus
256 bit

Connectivity

HDMI
1
DisplayPort
3
Dual Link DVI
No

System Requirements

Minimum Power Supply
800 W
Power Connectors
2x 8-pin

Dimensions

Length
298 mm
Height
131 mm
Thickness
58 mm

Top Specs

Memory
16GB, GDDR6
Connectivity
HDMI, DisplayPort

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
