Carpoint 230v Portable Charger Type 2 Electric Vehicles 1 Phase 8-16a 0280001
Electric Car Charging Station Cables

Carpoint 230v Portable Charger Type 2 Electric Vehicles 1 Phase 8-16a 0280001

With the Carpoint portable charger, you can quickly charge an electric vehicle via a 230 Volt connection with a charging capacity of up to 16 Amps. This portable charger is suitable for electric...

With the Carpoint portable charger, you can quickly charge an electric vehicle via a 230 Volt connection with a charging capacity of up to 16 Amps. This portable charger is suitable for electric vehicles with a 1-phase type 2 connection.

The charger has four indicator lights that show the status of the power supply and the charger, and if there is a fault.

    ...
See full description See full description
249 00 €

-5% for 3+ products

Delivery Thu, 25 Jun - Mon, 29 Jun
14,00 €   shipping cost
Sent from Greece
Add at least 3 of the same or different products from the offer and get -5% on every product!

Offer's products

All products in the offer
From Overneed 5.0 (3)
5.0 (3 reviews)
Greece
1 piece
See Car Electronics on the page of Overneed
Review the product
Product report

Description

Description

With the Carpoint portable charger, you can quickly charge an electric vehicle via a 230 Volt connection with a charging capacity of up to 16 Amps. This portable charger is suitable for electric vehicles with a 1-phase type 2 connection.

The charger has four indicator lights that show the status of the power supply and the charger, and if there is a fault.

  • Adjustable output charging current: 8-10-13 or 16 Amps
  • Start delay function: 1-2-4-6-8-10 Hours
  • Protection against: leakage, overvoltage, undervoltage, lightning, overcharging, and overheating
  • Clear screen with charging information
  • Total cable length: 5 meters (input cable length 40cm, output cable length 420cm)

Specifications:

  • Input: 230VAC - 50/60Hz - Max. 16A
  • Output voltage: 230VAC
  • Output current: 8A - 10A - 13A - 16A

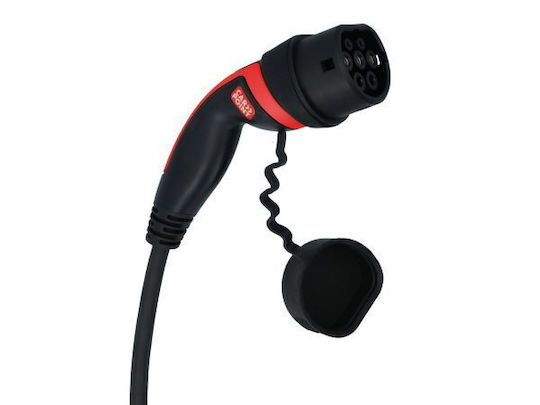

  • Output charging plug: Type 2 - IEC 62196-2 with protective cap
  • Plug lifespan without load: >10,000 times
  • Cable: 3x2.5 mm² + 2x0.5 mm²
  • Charger complies with IEC 61851 standard
  • Insulation resistance: >1000MD (DC500V)
  • Operating temperature: -20°C to +45°C
  • Protection rating: IP55h

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Phase Capacity
Single Phase
Cable Length
4.2 m
Connection Type
Type 2 - Type 2

Connection Type

  • Type 2: Compatible with all new electric vehicles available in the EU. Maximum charging power of 22kW (43kW at fast charging stations).
  • Type 1: Single-phase plug with a charging power of up to 7.4kW mainly for countries outside the EU.
  • Schuko: The classic plug for household sockets with a maximum charging power of up to 3.7kW.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

With the Carpoint portable charger, you can quickly charge an electric vehicle via a 230 Volt connection with a charging capacity of up to 16 Amps. This portable charger is suitable for electric vehicles with a 1-phase type 2 connection.

The charger has four indicator lights that show the status of the power supply and the charger, and if there is a fault.

  • Adjustable output charging current: 8-10-13 or 16 Amps
  • Start delay function: 1-2-4-6-8-10 Hours
  • Protection against: leakage, overvoltage, undervoltage, lightning, overcharging, and overheating
  • Clear screen with charging information
  • Total cable length: 5 meters (input cable length 40cm, output cable length 420cm)

Specifications:

  • Input: 230VAC - 50/60Hz - Max. 16A
  • Output voltage: 230VAC
  • Output current: 8A - 10A - 13A - 16A
  • Output charging plug: Type 2 - IEC 62196-2 with protective cap
  • Plug lifespan without load: >10,000 times
  • Cable: 3x2.5 mm² + 2x0.5 mm²
  • Charger complies with IEC 61851 standard
  • Insulation resistance: >1000MD (DC500V)
  • Operating temperature: -20°C to +45°C
  • Protection rating: IP55h

Manufacturer

Manufacturer Details

Warnings & Safety Information
Phase Capacity
Single Phase
Cable Length
4.2 m
Connection Type
Type 2 - Type 2

Connection Type

  • Type 2: Compatible with all new electric vehicles available in the EU. Maximum charging power of 22kW (43kW at fast charging stations).
  • Type 1: Single-phase plug with a charging power of up to 7.4kW mainly for countries outside the EU.
  • Schuko: The classic plug for household sockets with a maximum charging power of up to 3.7kW.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
