Carpoint offers a wide range of charging cables for electric vehicles, which are tested and certified to meet all electrical safety requirements. The robust construction ensures that the products can be used on a daily basis.

• Carpoint Phase 1 charging cable for all electric vehicles with a type 2 connection.
• Capacity 16 Amp, safely charges via 1 phase.
• Type 2 male charging side and type 2 female car charging side plug, compliant with the international standard IEC 62196-2.
• Cables designed according to IP55 classification, safe for outdoor use in all weather conditions.
• Total length of 10 meters offers maximum flexibility.
• Note: ensure that the maximum cable current and phases match the highest values of your charger and are supported by your car.

Specifications:

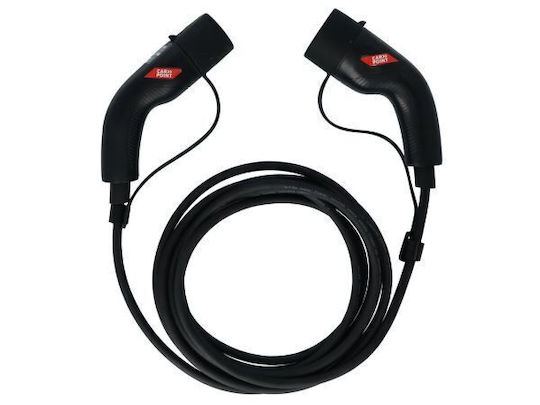

• Type 2 to type 2 electric vehicle charging cable.
• 16A, 1 phase, 220-250 VAC ± 10%.
• Length 10 meters.
• Fits all EV cars with a type 2 plug.

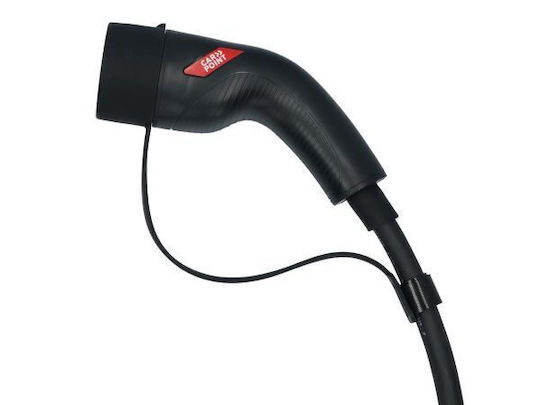

• Charger plug side: type 2 male (IEC 62196-2) with protective cover.
• Charging female cap: type 2 (IEC 62196-2) with protective cap.
• Protection rating IP55.
• Insulation resistance >1000MOhm.
• Voltage resistance 2000V.
• Contact resistance < 0.5 mOhm.
• Pin temperature rise 50,000 times.
• Shock resistance meets JDQ53.3 requirements.
• Cable type 5mm2 +2mm.
• Operating temperature -40°C ~ 50°C.
