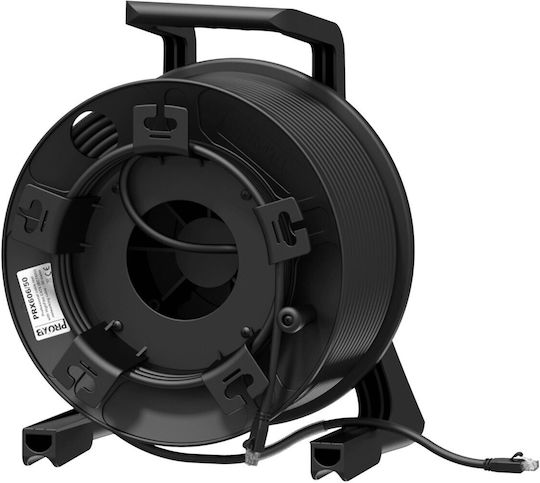

Wire reel with terminated CAT6 U/UTP cable - 70 meters.

Product features:

• Dimensions: 312 x 392 x 234 mm (L x H x W)
• Inner conductor insulation material: HDPE 1.02 mm (Ø)
• Inner conductor insulation colors: Green / White & Green, Blue / White & Blue, Orange / White & Orange, Brown / White & Brown
• Inner liner material: Durable PVC 6.6 mm (Ø)
• Outer jacket material: Flexible PVC 8.2 mm (Ø)
• Outer jacket colors: Black
• Cable type: U/UTP CAT6 Network cable
• Conductor material: BC 7 x 0.2 mm (Ø) (OFC)
• Section: 0.22 mm²
• Separator: Cross web Filling (PE)
• Cable gauge: 24 AWG
• Number of conductors: 8 (4 pairs)
• Conductor twist: Lay length ≤ 30 mm
• Connection type: RJ45 male to RJ45 male

Mechanical Characteristics:

• Temperature range: Fixed installation: -20 °C to +75 °C, Flexible installation: -15 °C to +60 °C
• Bending radius: Fixed installation: 10 x outer diameter, Flexible installation: 12 x outer diameter

Electrical Characteristics:

• Maximum conductor resistance: 140 (Ω / Km)
• DC resistance unbalanced: 5 %
• Dielectric strength: 1.5 (KV / 1 min. DC)
• Maximum delay / skew: 45 (ns / 100 m)
• Nameplate voltage: 300 V
Nominal propagation velocity: 65 %
• Characteristic impedance: 100 Ω ± 15 Ω
• Nominal mutual capacitance: ≤ 5.6 (nF / 100 m)
• Pair-to-ground capacitance: ≤ 330 (nF / 100 m)

Standards and regulations:

• RoHS2 compliance: According to EU Directive 2011/65/EU
• REACH compliance: According to EC Regulation 1907/2006
• Indoor / outdoor use: Indoor
• Cabling standard: ISO/IEC11801, IEC61156, UL444, ANSI TIA-EIA 568C.2
