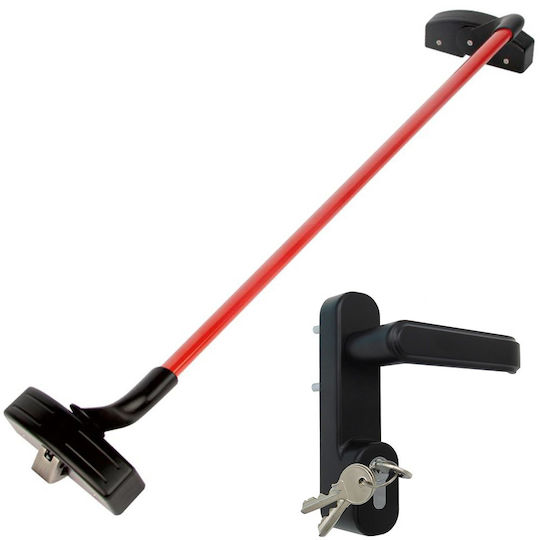

Technical Description: ARTE DK331 Panic Bars with Lock 012 and Pipe 1200mm

The ARTE DK331 panic bars are a complete emergency exit system, designed for installation on escape doors, in accordance with...

Technical Description: ARTE DK331 Panic Bars with Lock 012 and Pipe 1200mm

The ARTE DK331 panic bars are a complete emergency exit system, designed for installation on escape doors, in accordance with European standards. They ensure immediate exit access in emergency situations, combining functionality, durability, and aesthetics.

Dimensions and Materials of...

See full description See full description
Product report

Description

Description

Technical Description: ARTE DK331 Panic Bars with Lock 012 and Pipe 1200mm

The ARTE DK331 panic bars are a complete emergency exit system, designed for installation on escape doors, in accordance with European standards. They ensure immediate exit access in emergency situations, combining functionality, durability, and aesthetics.

Dimensions and Materials of Construction

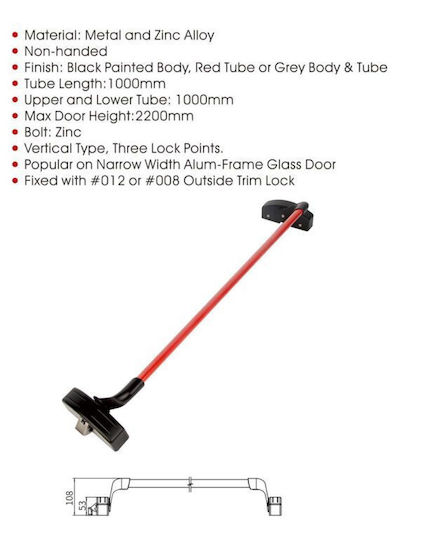

  • Pipe: Material: High-strength aluminum with a corrosion-resistant coating. Length: 1200mm (suitable for doors up to 1200mm wide). Pipe diameter: 22mm. Can be cut to fit narrower door widths.
  • Mechanism: Main mechanism: Made of high-strength steel. Dimensions of central body: 220mm (length) x 50mm (width) x 45mm (height). Support plate: 180mm x 40mm, for easy and stable installation.

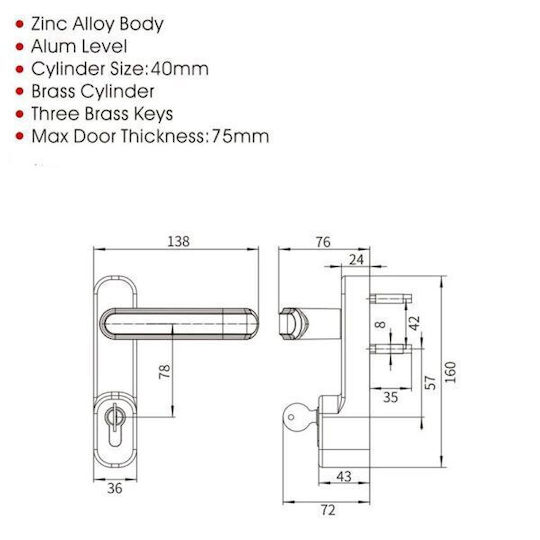

  • Lock 012: Material: Steel with a coating for wear protection. Dimensions: 60mm (length) x 35mm (width) x 25mm (height). Compatible with Euro-profile cylinders.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Genre
Panic

Genre

Panic

The panic bar is installed on doors, usually fire doors, to allow easy and immediate exit from the space in case of emergency. It operates with a mechanism that is activated by pushing, instead of pulling, as is the case with traditional doorknobs. The panic bar can be single or double, depending on the type of door.
Window
No
Folding
No
Colour
-

Dimensions

Maximum Length (m)
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
