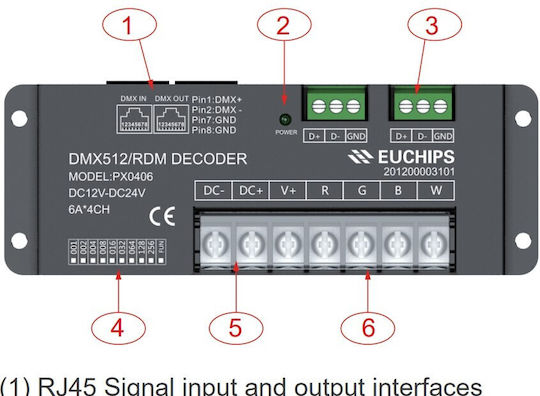

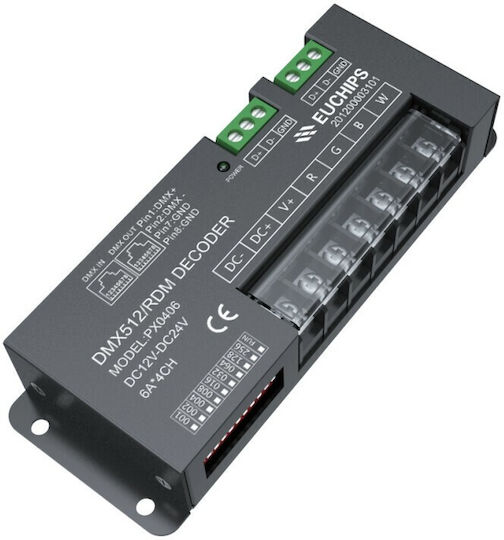

The PX series adopts advanced microcomputer control technology and converts the widely used international DMX512, RDM/2009 digital signal into a PWM control signal. Output of 1~4 channels for selection, and each channel can achieve 256 control levels, and can also be used as a link between a digital computer light controller and an analog light dimmer. It is mainly used for controlling buildings and lighting with LED applications.

• Channels: 1-4
• Voltage: 12-24VDC
• Current: 6A*4CH
• Power: 288W (12V) / 576W (24V)
• Voltage: 12-24VDC
• Standby loss: <1W
• Control signal: DMX512 1990/RDM 2009
• Dimension: 140*50*26 mm (L*W*H)
• Package size: 145*56*32 mm (L*W*H)
• GW: 240 g
• Operating temperature: -20~50℃
• Relative humidity: 20%~90% RH
