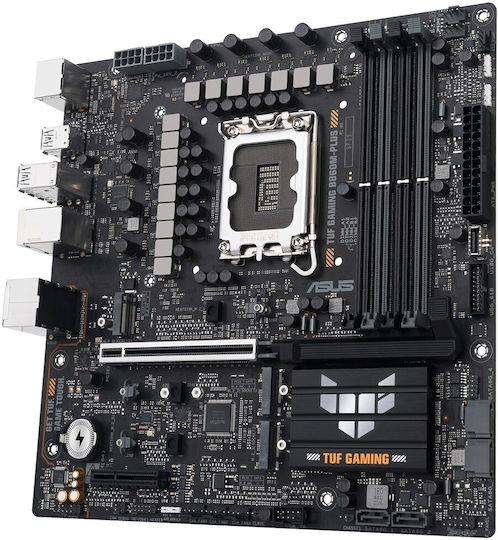

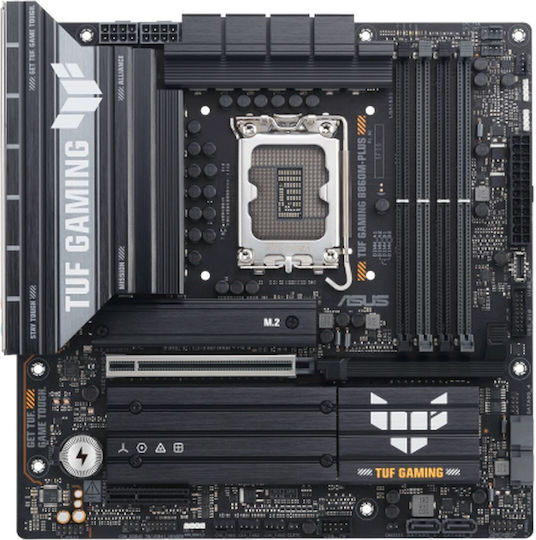

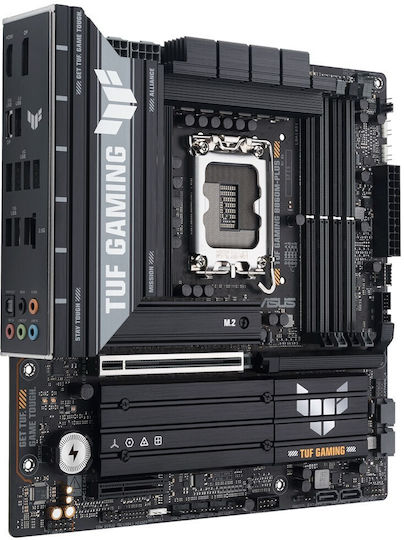

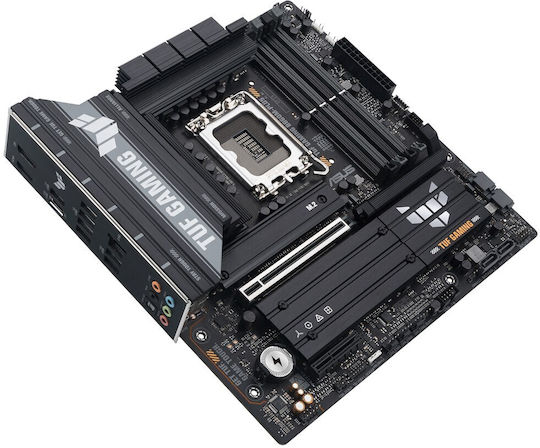

Asus TUF GAMING B860M-PLUS Motherboard Micro ATX with Intel 1851 Socket
Motherboards

Asus TUF GAMING B860M-PLUS Motherboard Micro ATX with Intel 1851 Socket

Key features:

  • 4 DDR5 Ram slots up to 8800+(OC)
  • For Intel Arrow Lake processors
  • Support for PCI Express 5.0 x16
  • Display connection DisplayPort, HDMI
  • Slots for 4x Sata III and 3x M.2
  • 6x USB 3.2, 1x USB 2.0
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

The ASUS TUF GAMING B860M-PLUS motherboard combines all the essential elements of the latest Intel® Core™ Ultra processors (Series 2) with game-ready features and proven durability. Built with military-grade components, an upgraded power solution, and an extensive cooling system, this motherboard delivers stable and reliable performance for marathon gaming.

Its features include:

  • Compatible processor: Intel Core Ultra (Series 2)
  • Processor socket system: LGA 1851 (Socket V1)
  • Memory type: DDR5-SDRAM
  • Available memory slots: 4 DIMM
  • Maximum internal memory: 256 GB
  • Supported storage types: HDD & SSD
  • Storage interfaces: M.2, SATA III
  • RAID support: 0, 1, 5, 10
  • Number of supported storage units: 7
  • Ethernet speed: 2.5 Gigabit

The TUF GAMING motherboard undergoes rigorous endurance testing to ensure it can withstand conditions where others might fail, providing the necessary power and connectivity required by advanced AI PC applications.

Connectivity

Performance

Cooling

Premium Power Design

Stable power delivery is critical for maximizing the full performance of Intel processors. The motherboard is designed to meet the needs of processors with a high core count. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power phases, which incorporate high-side and low-side MOSFETs as well as drivers, in packages that support up to 80A each. This configuration ensures optimal power supply, efficiency, stability, and performance for both current and future Intel processors.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that allows users to achieve unparalleled memory performance using advanced CUDIMM memory. Through a two-phase tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at top speeds of DDR5-7600 or higher.

Larger VRM Heatsinks

The extended surface of this heatsink covers the MOSFETs and chokes to improve thermal performance.

PCIe 5.0 for graphics cards

PCIe 5.0 offers double the data transfer speed compared to PCIe 4.0, making it powerful enough to handle new, data-intensive tasks. PCIe 5.0 also brings other advantages, such as electrical changes to improve signal integrity, backward-compatible CEM connections for add-on cards, and full compatibility with previous versions of the PCIe bus.

Front USB 10Gbps Type-C

This motherboard features a front panel USB 10Gbps Type-C® port for ultra-fast data transfers up to 10Gbps.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Core Ultra 5, Core Ultra 7, Core Ultra 9
Supported CPU Generation
Arrow Lake
Socket
1851

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B860

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
6800OC, 7000OC, 7200OC, 7600OC, 7800OC, 8000OC, 8200OC, 8400OC, 8800OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

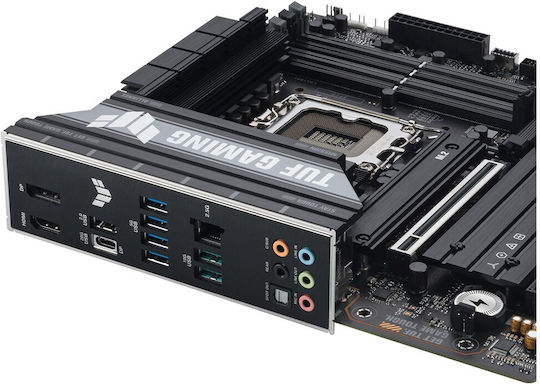

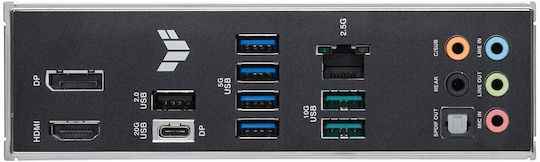

External Connectors

Rear USB-A outputs
1 USB 2.0 Port, 6 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
Clear CMOS button

Extra

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Core Ultra 5, Core Ultra 7, Core Ultra 9
Supported CPU Generation
Arrow Lake
Socket
1851

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel B860

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
6800OC, 7000OC, 7200OC, 7600OC, 7800OC, 8000OC, 8200OC, 8400OC, 8800OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
1 USB 2.0 Port, 6 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DisplayPort, HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
No
Extra
Clear CMOS button

Extra

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The ASUS TUF GAMING B860M-PLUS motherboard combines all the essential elements of the latest Intel® Core™ Ultra processors (Series 2) with game-ready features and proven durability. Built with military-grade components, an upgraded power solution, and an extensive cooling system, this motherboard delivers stable and reliable performance for marathon gaming.

Its features include:

  • Compatible processor: Intel Core Ultra (Series 2)
  • Processor socket system: LGA 1851 (Socket V1)
  • Memory type: DDR5-SDRAM
  • Available memory slots: 4 DIMM
  • Maximum internal memory: 256 GB
  • Supported storage types: HDD & SSD
  • Storage interfaces: M.2, SATA III
  • RAID support: 0, 1, 5, 10
  • Number of supported storage units: 7
  • Ethernet speed: 2.5 Gigabit

The TUF GAMING motherboard undergoes rigorous endurance testing to ensure it can withstand conditions where others might fail, providing the necessary power and connectivity required by advanced AI PC applications.

Connectivity

Performance

Cooling

Premium Power Design

Stable power delivery is critical for maximizing the full performance of Intel processors. The motherboard is designed to meet the needs of processors with a high core count. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power phases, which incorporate high-side and low-side MOSFETs as well as drivers, in packages that support up to 80A each. This configuration ensures optimal power supply, efficiency, stability, and performance for both current and future Intel processors.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that allows users to achieve unparalleled memory performance using advanced CUDIMM memory. Through a two-phase tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at top speeds of DDR5-7600 or higher.

Larger VRM Heatsinks

The extended surface of this heatsink covers the MOSFETs and chokes to improve thermal performance.

PCIe 5.0 for graphics cards

PCIe 5.0 offers double the data transfer speed compared to PCIe 4.0, making it powerful enough to handle new, data-intensive tasks. PCIe 5.0 also brings other advantages, such as electrical changes to improve signal integrity, backward-compatible CEM connections for add-on cards, and full compatibility with previous versions of the PCIe bus.

Front USB 10Gbps Type-C

This motherboard features a front panel USB 10Gbps Type-C® port for ultra-fast data transfers up to 10Gbps.

Manufacturer

Manufacturer Details

Warnings & Safety Information
