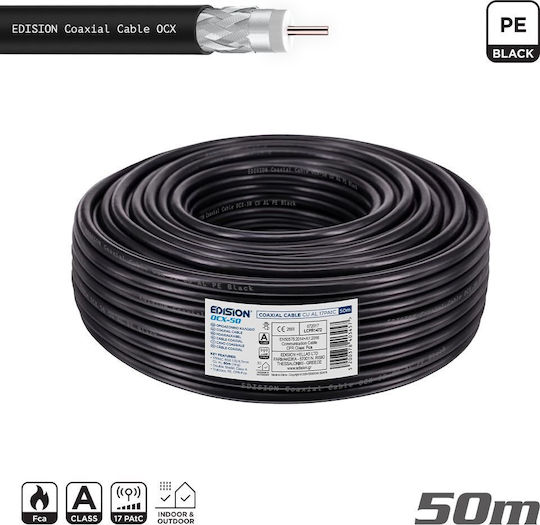

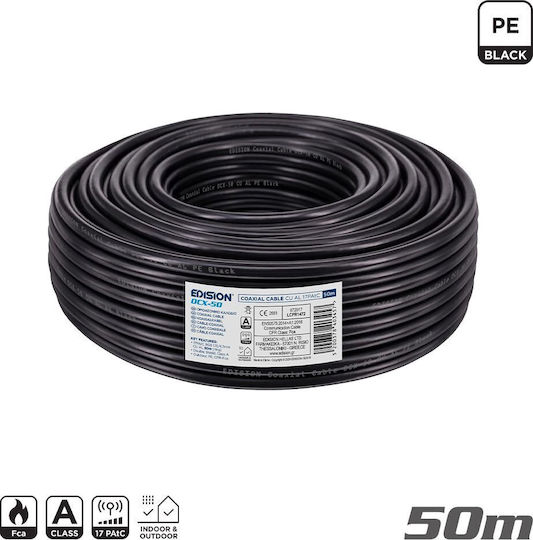

Coaxial Cable OCX-50 CU AL Fca PE, 50 meters long. RG6 coaxial cable, suitable for outdoor and indoor use, ideal for the distribution of Terrestrial Digital and Satellite TV signals as well as CCTV camera signals.

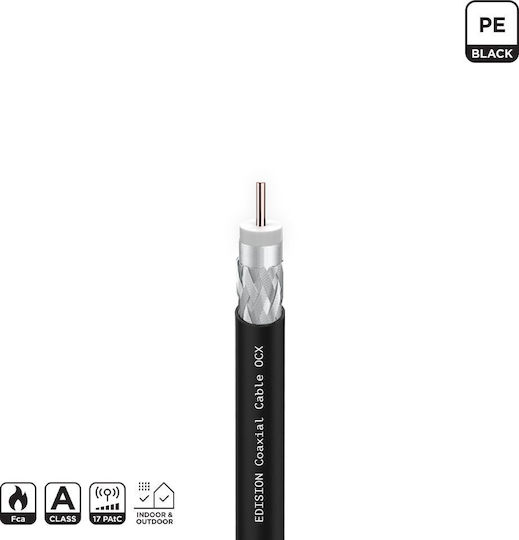

• Type: RG-6 Coaxial Cable, double shielded, OCX-50
• Shielding Class: Class A
• CPR Class: Fca
• Central Conductor: Diameter 1.13 ± 0.05 mm, Material: Copper (CU)
• Dielectric: Diameter 4.7 mm, Material: Foamed Polyethylene (FPE)
• Outer Sheath: Aluminum (AL) with 100% coverage
• Braid: Aluminum (AL) mesh 16x8x0.12 mm with 77% coverage
• External Jacket: Diameter 6.6mm ± 0.10 mm, Material: Black PE
• Characteristic Impedance: 75 Ohm
• Minimum Bending Radius: 35mm
• Return Loss: 5-862 MHz: >22 dB, 862-2150 MHz: >20 dB
• Losses dB per 1 meter:
• 5 MHz / 0.02 dB
• 30 MHz / 0.03 dB
• 50 MHz / 0.04 dB
• 200 MHz / 0.07 dB
• 400 MHz / 0.11 dB
• 500 MHz / 0.12 dB
• 800 MHz / 0.16 dB
• 860 MHz / 0.17 dB
• 1000 MHz / 0.18 dB
• 1350 MHz / 0.21 dB
• 1750 MHz / 0.25 dB
• 2050 MHz / 0.27 dB
• 2150 MHz / 0.28 dB
• Operating Temperature: -40°C ... +80°C
• Length: 50m (with meter marking)
• Weight: 1.73 kg
• Color: Black
• Packing: 50 meter Nylon coil
