The AXAGON PCEA-P1N PCI-Express card expands your desktop computer with a parallel DB25 port. It allows the connection of parallel devices such as printers and EPROM programmers. Compatibility and port settings are ensured by the ASIX chipset.

Input:

• PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0
• 1-Lane (x1) lane count, compatible with x1 / x4 / x8 / x16 PCIe slots
• 1 - Lane PCIe 2.0 bus bandwidth 5 Gb/s

Output:

• 1x IEEE 1284 parallel port with DB25 female connector
• Compatible with SPP/BYTE/ECP

Other features:

• Plug and Play support - automatic IRQ request and I/O address selection
• Compatible with PCI Power Management 1.2
• ASPM Power Management support
• Data transfer speed up to 1.5 MB/s
• ASIX AX99100 chipset

Supported operating systems:

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and newer
• Windows Server 2003 / 2008 / 2012 / 2016 / 2019 and newer (32 and 64 bit)
• Linux with kernel 2.6.11 and newer

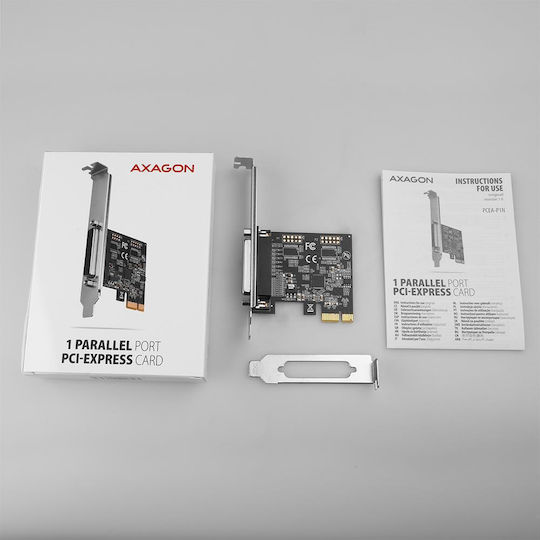

The package includes:

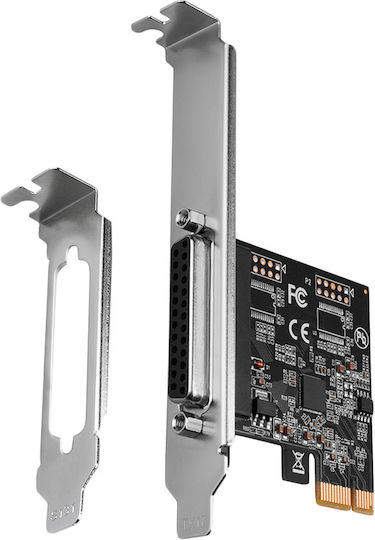

• PCI-Express card with standard bracket
• Low-profile bracket
• Printed multi-language user manual

Internal connectors: None

Interface: PCI Express 2.0 x1

External connectors: 1x DB-25 Parallel Port (LPT)

RAID Support: No data available
