Performance

• Maximum data transfer rate: 1200Mbit/s
• Ethernet/LAN connection: YES
• Wi-Fi: YES
• Network standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Power plug: Type C
• Integrated socket: YES
• Network interface type: Ethernet LAN Fast Ethernet
• Ethernet LAN data rates: 10, 100Mbit/s
• Number of Ethernet LAN (RJ-45) ports: 1
• Number of Power over Ethernet (PoE) ports: 1
• Top Wi-Fi standard: Wi-Fi 4 (802.11n)
• Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
• Supported WLAN data transfer speeds: 300, 1200Mbit/s
• Modulation: BPSK, DSSS, OFDM, QPSK
• Security algorithm support: 128-bit AES, WPA, WPA2, WPS-PBC, WPS-PIN
• Maximum operating distance: 400m
• MIMO: YES
• Quality of Service (QoS) support: YES
• Plug and play: YES

Power management

• Power consumption: 4.4W
• Power consumption, active: 1W
• AC input voltage: 196 - 250V
• AC input frequency: 50Hz

Design

• Product color: White
• Antenna type: Internal
• Number of antennas: 2
• Communication LED indicators: PLC, WLAN
• Certifications: ISVCE

Environmental conditions

• Operating temperature range: 0 - 40°C
• Storage temperature limits: -25 - 70°C
• Operating humidity range: 10 - 90%

Weight and dimensions

• Width: 68mm
• Depth: 68mm
• Height: 41mm
• Package width: 190mm
• Package depth: 231mm
• Package height: 92mm
• Package weight: 670g

Package contents

• Quantity per package: 2 pieces
• Cables included: LAN (RJ-45)
• Package type: Box

It will bring the internet to every corner of your home. The magical WLAN booster from devolo ensures that you can surf and stream from the hobby basement to the garden house, as much as you want. In many rooms at the same time, fantastically stable and with an impressive 1200 Mbit/s.

With the best network from the start! Fantastically individual and fantastically simple. The new devolo Home Network app makes possible what was previously only for experts – for everyone, at any time. Just download and get started. The new devolo Home Network app is compatible with all devolo Magic adapters – with and without WLAN function. It is available for both iOS and Android devices.

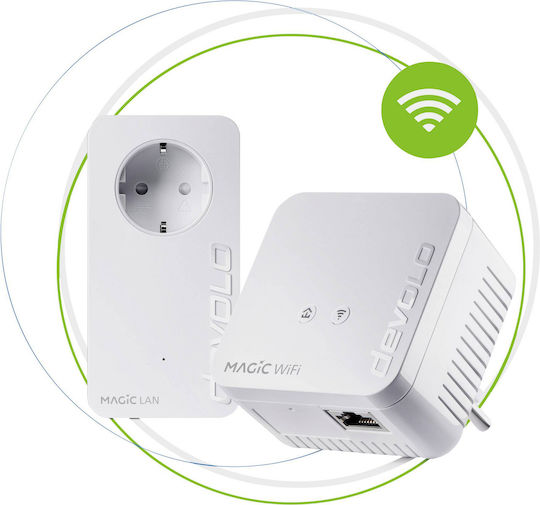

Magic Powerline combines with a WLAN amplifier at the highest level - this is the devolo Magic 1 WiFi. With WLAN-ac, incredible speeds of up to 1200 Mbit/s become a reality, wonderfully stable thanks to the revolutionary mesh WLAN.

Connect your computer, game console, or receiver fantastically easily with the devolo Magic adapters. Thanks to the integrated socket, no outlet is lost and you don't have to worry about compatibility. The Devolo Magic 1 WiFi can be combined with routers of any type.

Surf in the basement, listen to music on the rooftop under the stars. Work safely and reliably with large volumes of data. Watch the latest series in HD – whether on a tablet, smart TV, or PC. Don't just dream, make your call!

Since 2002, devolo has been developing innovations in Powerline technology with dedication. Since then, the Internet has spread from the devolo brand socket all over the world and has connected millions of customers. 300 employees worldwide ensure the excellent quality that devolo represents.

Bring Devolo quality into your home – with magical mesh WLAN. Get the devolo Magic 1 WiFi!
