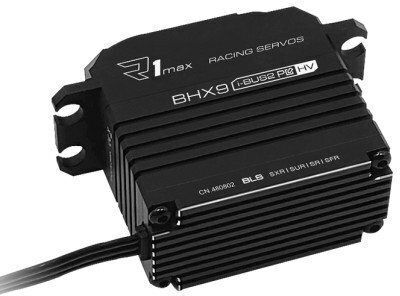

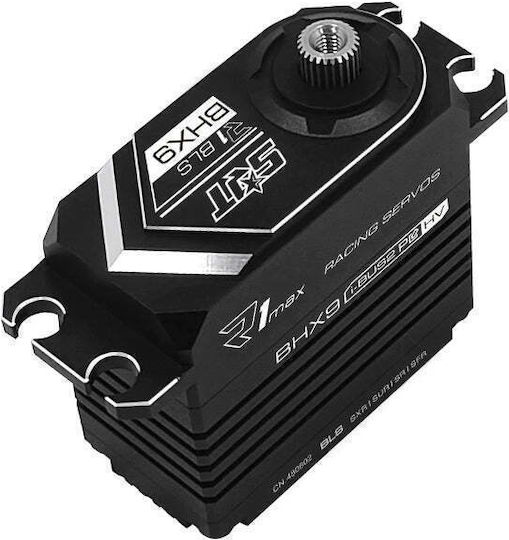

The latest generation SRT servo offers the performance you need for any application in vehicle, airplane, boat, or robot scale. It is a standard-sized servo for high voltage applications up to 8.4V and features a metal construction for optimal performance.

Features:

• Ideal for 1/10 on-road and 1/8 off-road scale applications
• Superior holding torque
• Amazing efficiency and low power consumption
• Standard dimensions, perfect for vehicles that can benefit from a high-quality servo
• CNC aluminum construction for excellent cooling
• Programmable high-torque Brushless servo
• Supports SXR, SUR, SR, SFR multiple ultra-high speeds
• 25T output shaft
• 2 msec Dead Band

Specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• Control System: Pulse width control
• Operating Frequency: 1520μs / 330hz
• Operating Voltage: dc6.0-8.4V
• Operating Temperature Range: -10 to +60 degrees
• Operating Speed (6.0V): 0.15 sec/60 degrees no load
• Operating Speed (7.4V): 0.11 sec/60 degrees no load
• Operating Speed (8.4V): 0.10 sec/60 degrees no load
• Torque Level (6.0V): 55.0kg.cm (763.8 oz/in)
• Torque Level (7.4V): 65.0kg.cm (902.7 oz/in)
• Torque Level (8.4V): 75.0kg.cm (1041.6 oz/in)
• Potentiometer Driving: Direct drive
• Dimensions: 40.0 x 20.0 x 39.2 mm
• Weight: 82.0g (2.89 oz)
• Connection Cable Length: jr 300 mm
