• Series: MAX
• Item: Equalizer
• EQ: 9 band
• Pre-out Channels: 3 pairs
• Input Mode: BT, Main/AUX
• Bluetooth: 5.0
• Frequency Response: 10-50,000Hz (+/-1dB)
• Output (RMS): 6V
• Maximum Output: 7V
• T.H.D: 0.01%
• Boost/Cut: 12dB
• S/N ratio: 101dBA
• Input Sensitivity: 50mV-3V
• Head room: 20dB
• Input Impedance: 20K Ohm
• Output Impedance: 1K Ohm
• Stereo separation: 82dB/1kHz

EQ Bands:

• 120Hz
• 250Hz
• 500Hz
• 1kHz
• 2kHz
• 4kHz
• 8kHz
• 12kHz
• 50Hz

Power Voltage: 11-15V

REM Output Voltage: 12V

Crossover Subwoofer: 18dB/Oct, 30-200Hz

ATO (Auto Turn On): DC-Offset, HI level

Fine-Tune
Control your sound power with a powerful and intuitive 9-band graphic equalizer. No unnecessary noisy elements thanks to its high-quality internal components, with excellent linear frequency response from top to bottom.

Quick and Easy

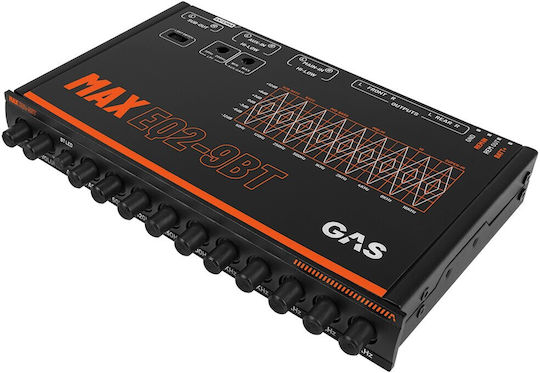

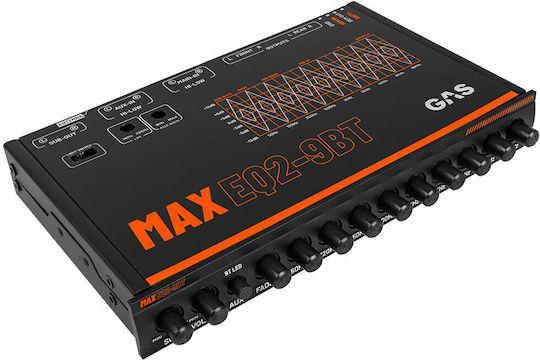

Shape your music according to your preferences. Want to boost the bass and reduce the treble? Or do you want to change the main volume (or even the subwoofer level)? Adjust the fader with great precision. All of this is at your fingertips with the MAX EQ2-9BT.

Take Control
The equalizer should never be the weakest link in your sound system. This powerful EQ features three pairs of 6V (RMS) gold-plated, low-impedance RCA inputs, high-level inputs for easy installation, and an automatic shutdown system.

BLUETOOTH 5.0
We live in a digital age and you are never far from playing a song, playlist, or collection of fantastic beats. Stream directly from your phone, tablet, or computer straight to the equalizer via Bluetooth 5.0! Showcasing your sound system has never been easier.
