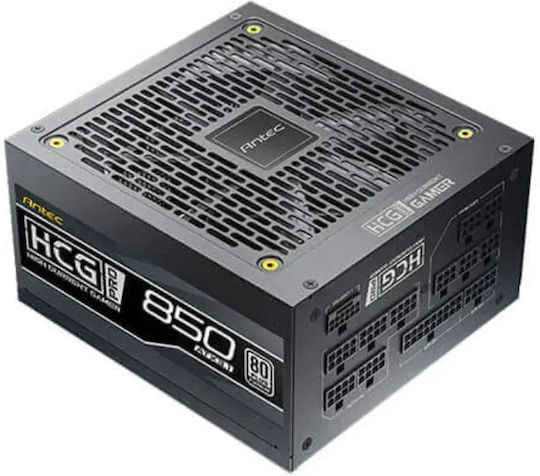

The Antec HCG850 PRO power supply delivers 850 W of power and is compatible with the ATX 3.1 standard. Its PhaseWave design is based on a full-bridge LLC topology with DC-DC synchronous rectification, while the PCIe 5.1 12VHPWR cable is intended for compatible graphics cards. Zero RPM mode activates the fan only when required by the thermal sensors.
The 135 mm fan uses an FDB bearing, and the power supply features fully modular cabling. Protections include OCP, OPP, OTP, OVP, SCP, and UVP.
- Power: 850 W
- Type: ATX

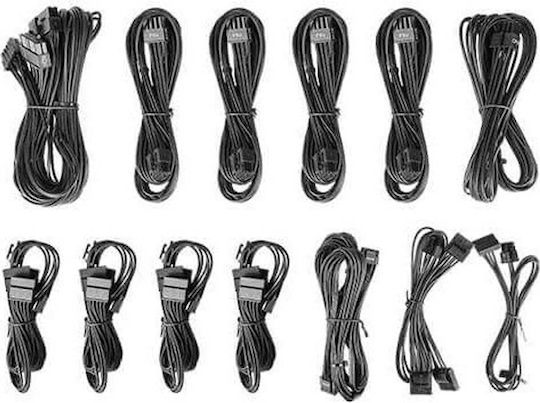

- Cabling: Fully modular
- Certification: 80 Plus Titanium
- Standard: ATX 3.1
- Circuit design: PhaseWave with full-bridge LLC and DC-DC synchronous rectification
- Cable: PCIe 5.1 12VHPWR
- Fan mode: Zero RPM with thermal sensors

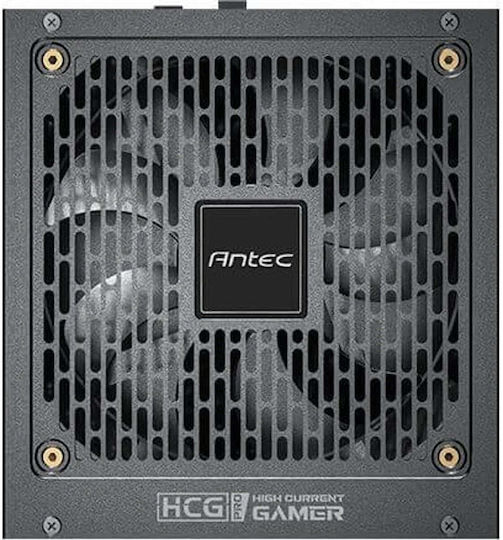

- Fan size: 135 mm
- Fan bearing: FDB
- Protections: OCP, OPP, OTP, OVP, SCP, UVP
- Color: Black
Dimensions
- Power
- 850 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Titanium
- Fan Dimension
- 135 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
