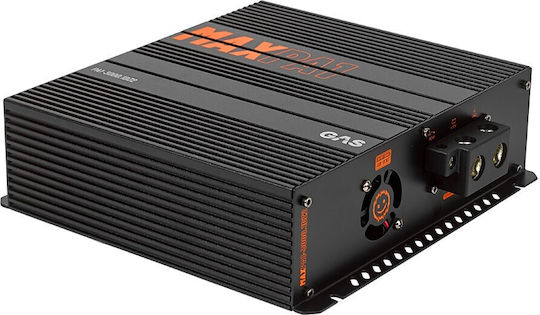

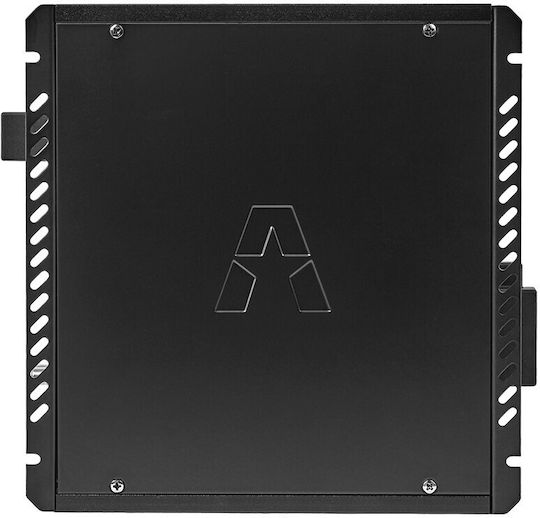

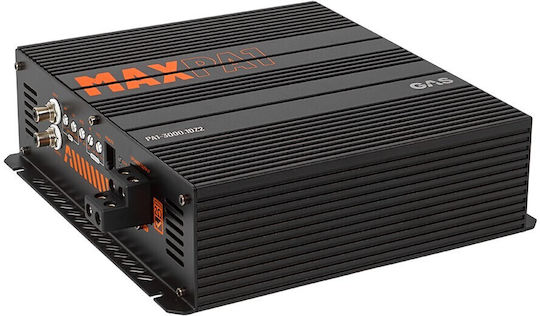

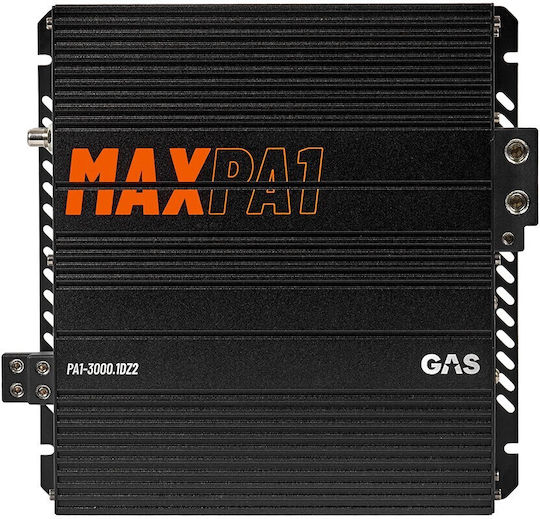

Component Amplifier

• Channels: One
• Input Mode: Mono
• Power RMS (2 Ohm): 1x3000W
• Power RMS (4 Ohm): 1x1700W
• Frequency Response: 15-22000 Hz
• Low Pass Filter: 50-22000 Hz
• High Pass Filter: 15-80 Hz
• S/N Ratio Analog (A-weighted): >92dB
• Bass EQ: 0-12dB @45Hz
• Crossover Slope: 12dB
• Power Supply Voltage: 10-16V
• REM Voltage: 10-16V
• Input Sensor: 0.2-10V
• T.H.D: 120
• RCA Line Out: Yes

Maximum Efficiency

The MAX PA1 series is high efficiency, Class D amplifiers – designed with extremely high-quality materials and innovative features for maximum efficiency.

Optimized Airflow

The unique aluminum heatsink has thermal properties to optimize the amplifier's temperature. The VCC system keeps cold air steadily flowing over the components.

High Quality Flexibility

The advanced Class D circuitry allows the connection of any type of speaker. The filters are adjustable, ensuring precise setting for low frequencies.

Capacity Management and Control

Continuous high power is possible thanks to a stabilized power supply that monitors the car battery's voltage fluctuations. All models feature high-quality RCA connections.

Size

MAX PA1 amplifiers feature reinforced cables and full-sized connections for power and ground.
