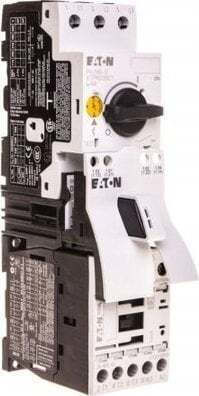

Starting unit 5.5kW 11.3A 230V MSC-D-12-M12(230V50HZ)

• Degree of protection (IP): IP20
• Type of control voltage: AC
• With short-circuit release: Yes
• With bus handling: No
• Function: Direct start
• Type of connection for main circuit: Screw connection
• Setting range for overload release [A]: 8 - 12
• Rated control voltage Us for AC 50 Hz [V]: 230
• Type of coordination: 1
• Rated operating current Ie [A]: 11.3
• Rated conditional short-circuit current Iq [kA]: 100
• Rated power at AC-3, 400 V [kW]: 5.5
• Manufacturer code: 283148
