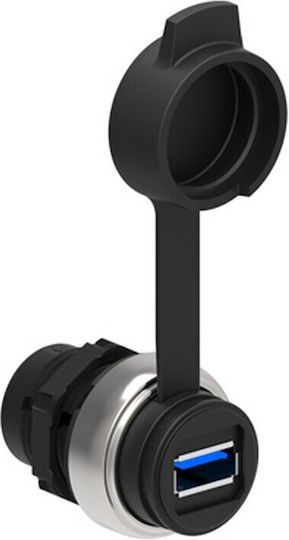

Lovato Electric Power Socket with 1 USB Port Waterproof Black
Power Sockets

Lovato Electric Power Socket with 1 USB Port Waterproof Black

USB Socket Fi22mm, connection type 3.0 A/A (LPCD01)

  • USB Category: 3.0 (compatible with USB class 2.0)
  • Connection: type A/A, female
  • Rated current: 1.8A
  • Rated insulation voltage: 5V AC/DC
  • Insulation...

USB Socket Fi22mm, connection type 3.0 A/A (LPCD01)

  • USB Category: 3.0 (compatible with USB class 2.0)
  • Connection: type A/A, female
  • Rated current: 1.8A
  • Rated insulation voltage: 5V AC/DC
  • Insulation resistance: >100MOhm
  • Contact resistance: 750
  • Mounting hole connections: 22 mm
  • Mounting method: using a threaded nut as well as on the LPZ housing cover
  • Data...
See full description See full description

Top specs

See all

  • Protection Certification

    IP65

    Provides complete protection against dust and strong water spray or rain. Suitable for outdoor areas with heavy exposure to rain or moisture.

  • USB Current Intensity

    3

    Supports ultra-fast charging or charging of multiple devices simultaneously via USB hubs.

Learn more about invoicing
Review the product
Product report

Description & Specifications

USB Socket Fi22mm, connection type 3.0 A/A (LPCD01)

  • USB Category: 3.0 (compatible with USB class 2.0)
  • Connection: type A/A, female
  • Rated current: 1.8A
  • Rated insulation voltage: 5V AC/DC
  • Insulation resistance: >100MOhm
  • Contact resistance: 750
  • Mounting hole connections: 22 mm
  • Mounting method: using a threaded nut as well as on the LPZ housing cover
  • Data transmission characteristics: 5Gbps (625MB/s)
  • Operating temperature range: from -25°C to 70°C
  • Protection level: IP65 front (with cover), IP20 on cables

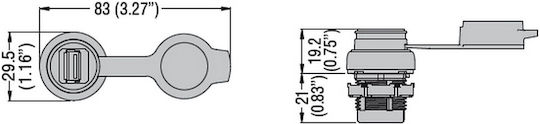

  • Diameter: 29.5mm
  • Length: 40.2mm
  • Housing material: polyamide
  • Color: black

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Complete

Type

Complete
The mechanism, the front face, and the decorative frame of the socket are included
USB-A
Yes
USB-C
No
Colour
Black

Voltage & Load

USB Current Intensity
3 A

USB Current Intensity: 3


Supports ultra-fast charging or charging of multiple devices simultaneously via USB hubs.

Safety & Protection

Protection Certification
IP65

Protection Certification

IP65
Provides complete protection against dust and strong water spray or rain. Suitable for outdoor areas with heavy exposure to rain or moisture.
Protection for Children
No

Protection for Children

It is a mechanism that prevents children from inserting objects or their fingers into the socket outlets, reducing the risk of electric shock.

Additional Features

Illuminated
No
Switch
No
with Light Sensor
No
Lid
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
