Satel Wireless Curtain Motion Sensor Microwave and Infrared Range 14m
Motion Sensors

Satel Wireless Curtain Motion Sensor Microwave and Infrared Range 14m

Bidirectional Sensor SATEL AGATE (PIR+MW)

  • Two detection channels: PIR and microwave
  • Active protection against IR masking detection for indoor applications
  • Transparent polycarbonate housing with IP54...

Bidirectional Sensor SATEL AGATE (PIR+MW)

  • Two detection channels: PIR and microwave
  • Active protection against IR masking detection for indoor applications
  • Transparent polycarbonate housing with IP54 protection
  • Vandalism protection against opening and disconnection from the surface

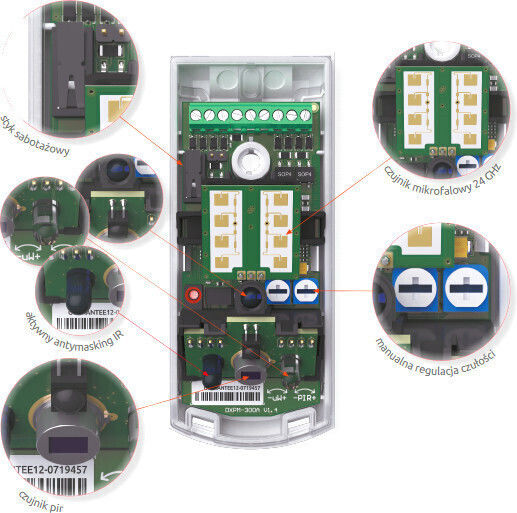

  • Detection channel sensitivity adjustment via potentiometers on the board
  • Low...
See full description See full description

  • Login

    Wireless

    It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.

  • Detection Type

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Protection Certification

    IP54

    Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.

  • Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.

    1

  • Mounting Height

    The recommended maximum installation height of the sensor.
  • See all
Review the product
Product report

Description

Description

Bidirectional Sensor SATEL AGATE (PIR+MW)

  • Two detection channels: PIR and microwave
  • Active protection against IR masking detection for indoor applications
  • Transparent polycarbonate housing with IP54 protection
  • Vandalism protection against opening and disconnection from the surface
  • Detection channel sensitivity adjustment via potentiometers on the board
  • Low power consumption
  • Easy installation directly on a flat surface or with a special angled bracket

Model: AGATE

  • Power supply voltage: 12 V
  • Recommended installation height: 2.4m
  • Sensor detection range: 14 m
  • Housing protection factor: IP54
  • Detection type: PIR + MW
  • Battery type: Quadruple
  • Detectable movement speed: 0.3 ÷ 3 m/s
  • Standby current consumption: 21 mA
  • Maximum current consumption: 25 mA
  • Environmental category according to EN50130-5: III A
  • Alarm signal time: 5 sec
  • Sensor range: 14
  • Animal immunity: No
  • Digital temperature compensation: Yes
  • Masking detection mode: Yes
  • Optical type: None

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Microwave, Infrared

Detection Type

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Protection Certification
IP54

Protection Certification

IP54

Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.
Scope
14 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Mounting Height
2.4

Mounting Height

The recommended maximum installation height of the sensor.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Bidirectional Sensor SATEL AGATE (PIR+MW)

  • Two detection channels: PIR and microwave
  • Active protection against IR masking detection for indoor applications
  • Transparent polycarbonate housing with IP54 protection
  • Vandalism protection against opening and disconnection from the surface
  • Detection channel sensitivity adjustment via potentiometers on the board
  • Low power consumption
  • Easy installation directly on a flat surface or with a special angled bracket

Model: AGATE

  • Power supply voltage: 12 V
  • Recommended installation height: 2.4m
  • Sensor detection range: 14 m
  • Housing protection factor: IP54
  • Detection type: PIR + MW
  • Battery type: Quadruple
  • Detectable movement speed: 0.3 ÷ 3 m/s
  • Standby current consumption: 21 mA
  • Maximum current consumption: 25 mA
  • Environmental category according to EN50130-5: III A
  • Alarm signal time: 5 sec
  • Sensor range: 14
  • Animal immunity: No
  • Digital temperature compensation: Yes
  • Masking detection mode: Yes
  • Optical type: None

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Microwave, Infrared

Detection Type

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Protection Certification
IP54

Protection Certification

IP54

Suitable for indoor or outdoor areas with limited dust. Provides protection against the ingress of objects and withstands light rain or water splashes.
Scope
14 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Mounting Height
2.4

Mounting Height

The recommended maximum installation height of the sensor.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
